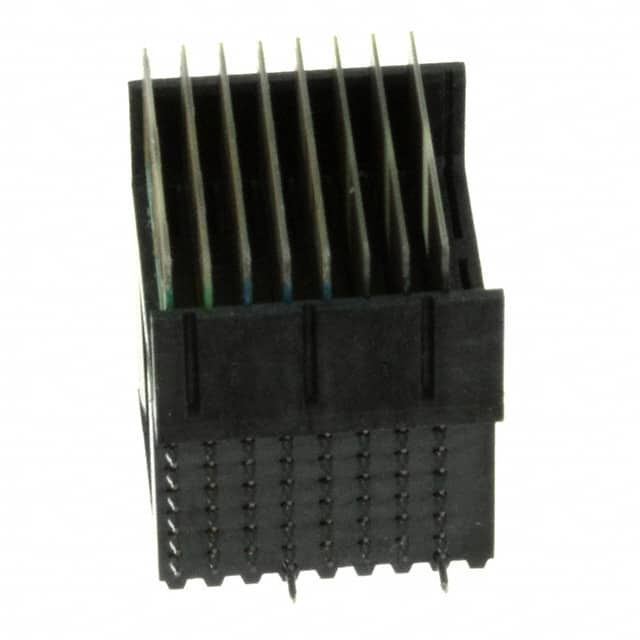

1410189-3
1410189-3
- In Stock: 0
- Manufacturer: TE Connectivity AMP Connectors
- Part Number: 1410189-3
- Detailed Description: CONN PLUG VITA46 56POS EDGE MNT
- Category: 连接器，互连器件 | 背板连接器 - 专用
- RoHS Status： 不符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$82.7640
10+
$77.7982
100+
$73.6600
1000+
$69.5218
10000+
$65.3836
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity AMP Connectors |
|---|---|
| 系列 | MULTIGIG RT2 |
| 包装 | 管件 |
| 标准包装 | 30 |
| 产品状态 | 在售 |
| 连接器用途 | 子卡 |
| 连接器类型 | 插头，公型片状插脚 |
| 连接器样式 | VITA 46，半尺寸，左端 |
| 针位数 | 56 |
| 加载的针位数 | 53 |
| 间距 | 0.071"（1.80mm） |
| 排数 | 7 |
| 列数 | 8 |
| 安装类型 | 板边缘，通孔，直角 |
| 端接 | 压配 |
| 触头布局，典型 | 4 信号对，16 路单信号，6 个电源组，11 个接地，3 个空端 |
| 特性 | 板导轨 |
| 触头表面处理 | 镀金 |
| 触头表面处理厚度 | 50.0µin（1.27µm） |
| 颜色 | 黑色 |
| 额定电流（安培） | 1A |
| 材料可燃性等级 | UL94 V-0 |
| 工作温度 | -55°C ~ 105°C |
| 额定电压 | 50V |
| 基本产品编号 | 1410189 |
Environmental & Export
| RoHS Status | 不符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
