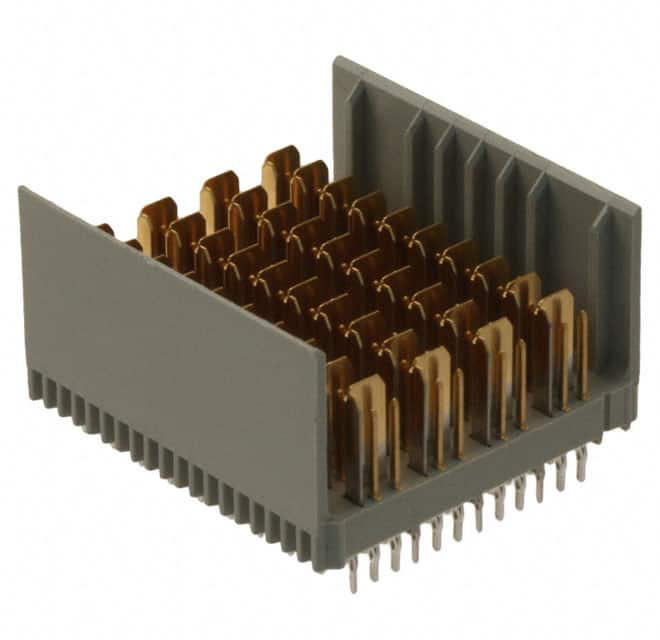

1469002-1
1469002-1
- In Stock: 0
- Manufacturer: TE Connectivity AMP Connectors
- Part Number: 1469002-1
- Detailed Description: CONN HDR HIGH SPEED 120POS PCB
- Category: 连接器，互连器件 | 背板连接器 - 专用
- RoHS Status： 不符合 RoHS 规范
Reference Price (USD)
1+
$28.1760
10+
$26.4854
100+
$25.0766
1000+
$23.6678
10000+
$22.2590
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity AMP Connectors |
|---|---|
| 系列 | Z-PACK HM-Zd |
| 包装 | 管件 |
| 标准包装 | 20 |
| 产品状态 | 在售 |
| 连接器用途 | 背板 |
| 连接器类型 | 接头，公引脚和刀片 |
| 连接器样式 | 高速度 |
| 针位数 | 120 |
| 加载的针位数 | 所有 |
| 间距 | 0.098"（2.50mm） |
| 排数 | 8 |
| 列数 | 10 |
| 安装类型 | 通孔 |
| 端接 | 压配 |
| 触头布局，典型 | 80 单信号，40 接地 |
| 特性 | - |
| 触头表面处理 | 镀金 |
| 触头表面处理厚度 | 30.0µin（0.76µm） |
| 颜色 | - |
| 额定电流（安培） | 0.700A |
| 材料可燃性等级 | UL94 V-0 |
| 工作温度 | -65°C ~ 105°C |
| 额定电压 | 250V |
| 基本产品编号 | 1469002 |
Environmental & Export
| RoHS Status | 不符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
