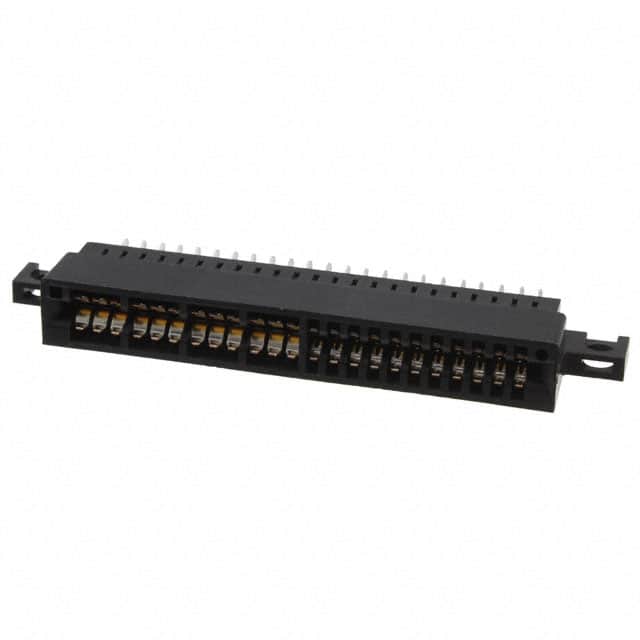

1761879-1
1761879-1
- In Stock: 0
- Manufacturer: TE Connectivity AMP Connectors
- Part Number: 1761879-1
- Detailed Description: CONN EDGE DUAL FMALE 30POS GOLD
- Category: 连接器，互连器件 | 边缘板连接器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$10.6800
10+
$10.0392
100+
$9.5052
1000+
$8.9712
10000+
$8.4372
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity AMP Connectors |
|---|---|
| 系列 | Standard Edge II |
| 包装 | 托盘 |
| 标准包装 | 24 |
| 产品状态 | 在售 |
| 卡类型 | 非指定 - 双边 |
| 公母 | 母头 |
| 针位/格/排数 | 1；1；1；1；11 |
| 针位数 | 30（22 + 8 电源） |
| 卡厚度 | 0.054" ~ 0.070"（1.37mm ~ 1.78mm） |
| 排数 | 2 |
| 间距 | - |
| 读数 | 双 |
| 特性 | 转接板 |
| 安装类型 | 板边缘，跨骑式安装 |
| 端接 | 焊接 |
| 触头材料 | 铜合金 |
| 触头表面处理 | 镀金 |
| 触头表面处理厚度 | 30.0µin（0.76µm） |
| 触头类型 | - |
| 颜色 | 黑色 |
| 法兰特征 | 齐平安装，侧开口，无螺纹，0.145"（3.68mm）直径 |
| 工作温度 | -55°C ~ 85°C |
| 材料 - 绝缘 | 聚酯，玻璃纤维增强型 |
| 基本产品编号 | 1761879 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
