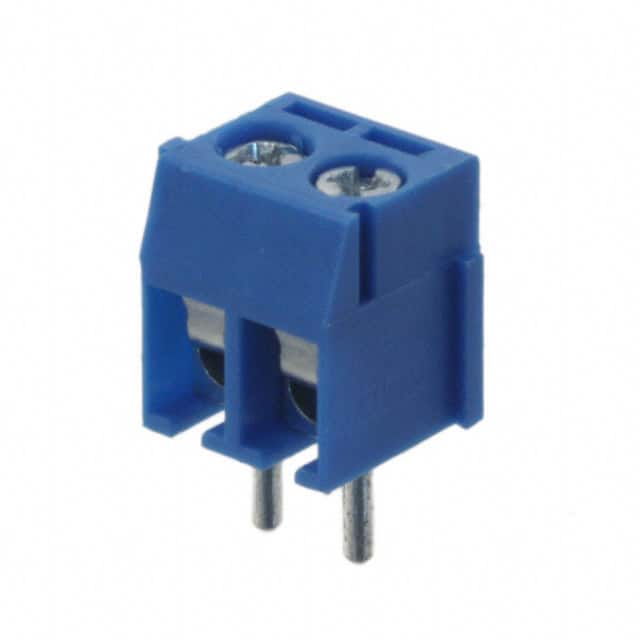

1776275-2
1776275-2
- In Stock: 0
- Manufacturer: TE Connectivity AMP Connectors
- Part Number: 1776275-2
- Detailed Description: 2 接线板 - 线至板 水平，带板 0.138"（3.50mm） 通孔
- Category: 连接器，互连器件 | 端子块 - 线对板
- RoHS Status： 不符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.0320
10+
$0.9701
100+
$0.9185
1000+
$0.8669
10000+
$0.8153
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity AMP Connectors |
|---|---|
| 系列 | Buchanan |
| 包装 | 散装 |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| 层级数 | 1 |
| 每级针位数 | 2 |
| 间距 | 0.138"（3.50mm） |
| 配接方向 | 水平，带板 |
| 电流 | 7 A |
| 电压 | 250 V |
| 线规 | 18-26 AWG |
| 安装类型 | 通孔 |
| 电线端接 | 螺钉 - 片簧，电线护网 |
| 特性 | 联锁（侧面） |
| 颜色 | 蓝色 |
| 工作温度 | -55°C ~ 105°C |
| 外壳材料 | 聚酰胺（PA66），尼龙 6/6 |
| 触头材料 - 镀层 | 黄铜 - 镀铜锡 |
| 夹具材料 - 镀层 | 不锈钢 |
| 螺钉材料 - 镀层 | 钢，镀锌 - 镀铬酸盐 |
| 扭矩 - 螺钉 | 0.28Nm（2.5 Lb-In） |
| 螺纹 | M2.6 |
| 基本产品编号 | 776275 |
Environmental & Export
| RoHS Status | 不符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
