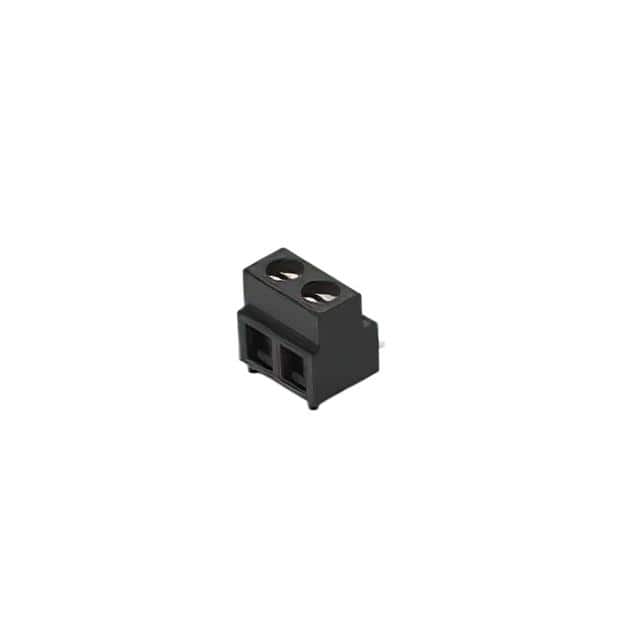

2383938-2
2383938-2
- In Stock: 0
- Manufacturer: TE Connectivity AMP Connectors
- Part Number: 2383938-2
- Detailed Description: TERMI-BLOK SMD MOUNT 180_2P_5 MM
- Category: 连接器，互连器件 | 端子块 - 线对板
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.0240
10+
$2.8426
100+
$2.6914
1000+
$2.5402
10000+
$2.3890
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity AMP Connectors |
|---|---|
| 系列 | Termi-Blok, Buchanan |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 230 |
| 产品状态 | 在售 |
| 层级数 | 1 |
| 每级针位数 | 2 |
| 间距 | 0.197"（5.00mm） |
| 配接方向 | 水平，带板 |
| 电流 | 13.5 A |
| 电压 | 300 V |
| 线规 | 16-30 AWG |
| 安装类型 | 表面贴装型 |
| 电线端接 | 螺钉 - 提升笼式夹 |
| 特性 | 板导轨 |
| 颜色 | 黑色 |
| 工作温度 | -40°C ~ 105°C |
| 外壳材料 | 聚酰胺（PA），尼龙 |
| 触头材料 - 镀层 | 铜合金 - 镀镍锡 |
| 夹具材料 - 镀层 | 铜合金 - 镀镍 |
| 螺钉材料 - 镀层 | 铜合金 - 镀镍 |
| 扭矩 - 螺钉 | 0.5-0.6Nm（4.4-5.3 Lb-In） |
| 螺纹 | M3 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
