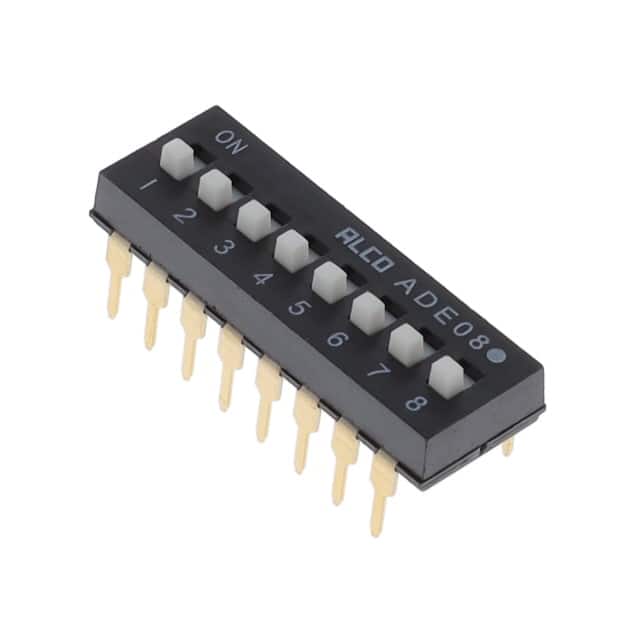

ADE08A04
ADE08A04
- In Stock: 0
- Manufacturer: TE Connectivity ALCOSWITCH Switches
- Part Number: ADE08A04
- Detailed Description: SWITCH SLIDE DIP SPST 100MA 24V
- Category: 开关 | DIP 开关
- RoHS Status： 符合 ROHS3 规范
Reference Price (USD)
1+
$2.0400
10+
$1.9176
100+
$1.8156
1000+
$1.7136
10000+
$1.6116
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
|---|---|
| 系列 | ADE |
| 包装 | 管件 |
| 标准包装 | 20 |
| 产品状态 | 在售 |
| 电路 | SPST |
| 针位数 | 8 |
| 额定电流（安培） | 100mA |
| 额定电压 | 24VDC |
| 致动器类型 | 滑动式（标准） |
| 致动器水平 | 凸起式 |
| 触头材料 | 铜合金 |
| 触头表面处理 | 镀金 |
| 板上高度 | 0.228"（5.80mm） |
| 安装类型 | 通孔 |
| 端接样式 | PC 引脚 |
| 间距 | 0.100"（2.54mm），全 |
| 可水洗 | 是 |
| 特性 | - |
| 工作温度 | -30°C ~ 85°C |
| 基体材料 | 聚苯硫醚（PPS） |
| 长度 | 0.876"（22.26mm） |
| 机械寿命 | 1000 次循环 |
| 电气寿命 | 1000 次循环 |
| 基本产品编号 | ADE08 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 不适用 |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8536.50.9065 |
