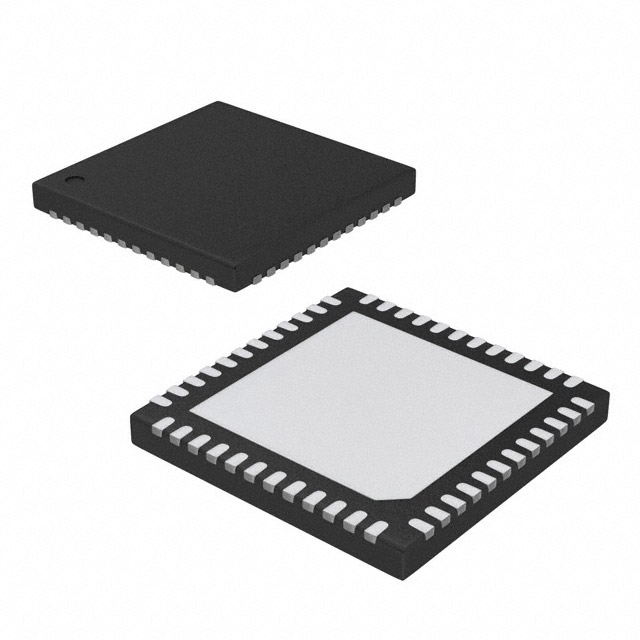

ADF7021-NBCPZ
ADF7021-NBCPZ
- Available: 1000
- Manufacturer: Analog Devices Inc.
- Part Number: ADF7021-NBCPZ
- Detailed Description: IC RF TXRX ISM<1GHZ 48VFQFN
- Category: 射频和无线 | 射频收发器 IC
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$8.0880
10+
$7.6027
100+
$7.1983
1000+
$6.7939
10000+
$6.3895
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc. |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 260 |
| 产品状态 | 在售 |
| 类型 | 仅限 TxRx |
| 射频系列/标准 | 通用 ISM < 1GHz |
| 协议 | - |
| 调制 | 2FSK，2GFSK，3FSK，4FSK，FHSS，GMSK，MSK |
| 频率 | 80MHz ~ 650MHz，842MHz ~ 916MHz |
| 数据速率（最大值） | 24kbps |
| 功率 - 输出 | 13dBm |
| 灵敏度 | -130dBm |
| 存储容量 | - |
| 串行接口 | SPI，UART |
| 电压 - 供电 | 2.3V ~ 3.6V |
| 电流 - 接收 | 17.5mA ~ 26.4mA |
| 电流 - 传输 | 13.5mA ~ 32.3mA |
| 工作温度 | -40°C ~ 85°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 48-WFQFN 裸露焊盘，CSP |
| 供应商器件封装 | 48-LFCSP（7x7） |
| 基本产品编号 | ADF7021 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
