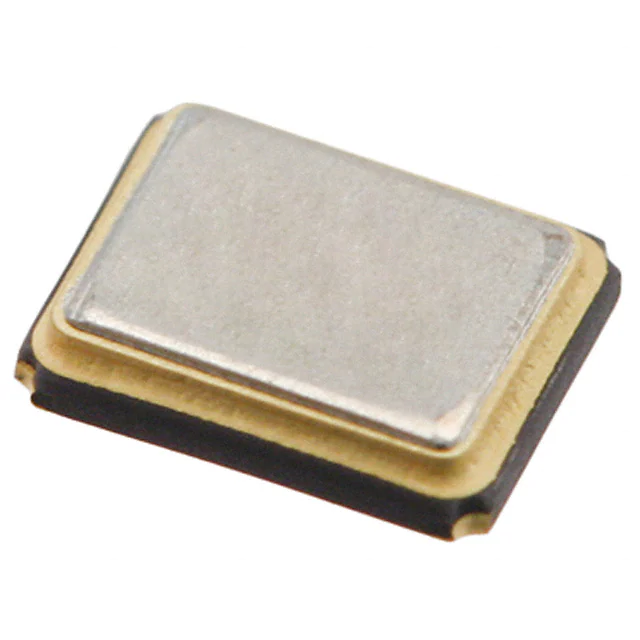

AM-12.000MAGE-T
AM-12.000MAGE-T
- Available: 15000
- Manufacturer: TXC CORPORATION
- Part Number: AM-12.000MAGE-T
- Detailed Description: CRYSTAL 12.0000MHZ 12PF SMD
- Category: 晶体，振荡器，谐振器 | 晶体
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.0080
10+
$0.9475
100+
$0.8971
1000+
$0.8467
10000+
$0.7963
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TXC CORPORATION |
|---|---|
| 系列 | AM |
| 包装 | - |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 类型 | MHz 晶体 |
| 频率 | 12 MHz |
| 频率稳定性 | ±50ppm |
| 频率容差 | ±30ppm |
| 负载电容 | 12pF |
| ESR（等效串联电阻） | 100 Ohms |
| 工作模式 | 基谐 |
| 工作温度 | -40°C ~ 85°C |
| 等级 | AEC-Q200 |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 4-SMD，无引线 |
| 大小 / 尺寸 | 0.126" 长 x 0.098" 宽（3.20mm x 2.50mm） |
| 高度 - 安装（最大值） | 0.031"（0.80mm） |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8541.60.0050 |
