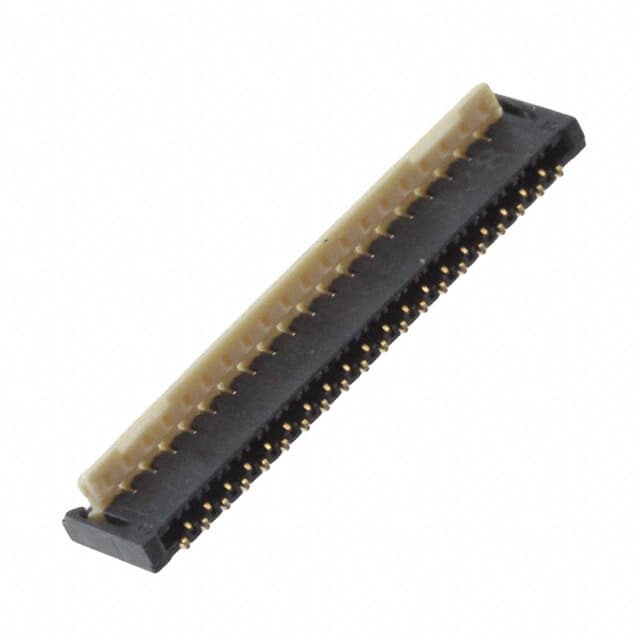

AYF333735A
AYF333735A
- In Stock: 0
- Manufacturer: Panasonic Electric Works
- Part Number: AYF333735A
- Detailed Description: CONN FPC 37POS 0.30MM R/A
- Category: 连接器，互连器件 | FFC、FPC（扁平柔性）连接器组件
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.4240
10+
$2.2786
100+
$2.1574
1000+
$2.0362
10000+
$1.9150
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Panasonic Electric Works |
|---|---|
| 系列 | Y3B |
| 包装 | 带 |
| 标准包装 | 500 |
| 产品状态 | 停产 |
| 扁平柔性类型 | FPC |
| 安装类型 | 表面贴装，直角 |
| 连接器/触头类型 | 触头，上和下 |
| 针位数 | 37 |
| 间距 | 0.012"（0.30mm） |
| 端接 | 焊接 |
| FFC、FCB 厚度 | 0.20mm |
| 板上高度 | 0.035"（0.88mm） |
| 锁定功能 | 翻转锁定，背锁 |
| 电缆端类型 | 锥形 |
| 触头材料 | 铜合金 |
| 触头表面处理 | 镀金 |
| 外壳材料 | 液晶聚合物（LCP） |
| 致动器材料 | 液晶聚合物（LCP） |
| 特性 | - |
| 额定电压 | 50V |
| 工作温度 | -55°C ~ 85°C |
| 材料可燃性等级 | UL94 V-0 |
| 额定电流（安培） | 0.2A/触头 |
| 触头表面处理厚度 | - |
| 外壳颜色 | - |
| 致动器颜色 | - |
| 配接次数 | 20 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4051 |
How to Buy
| Process | Submit enquiry>Confirm offer>Send order>Complete payment >Delivery |
|---|---|
| Payment | TT, PayPal, Escrow, more please consult our account manager. |
| Delivery period | For in-stock parts, orders are estimated to ship out in 3 days. |
| Shipping option | We provide DHL, FedEx, UPS for international transportation. |
| Shipping tracking | Orders are shipped and we will notify you of the tracking number by email. |
| Warranty | Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation |
