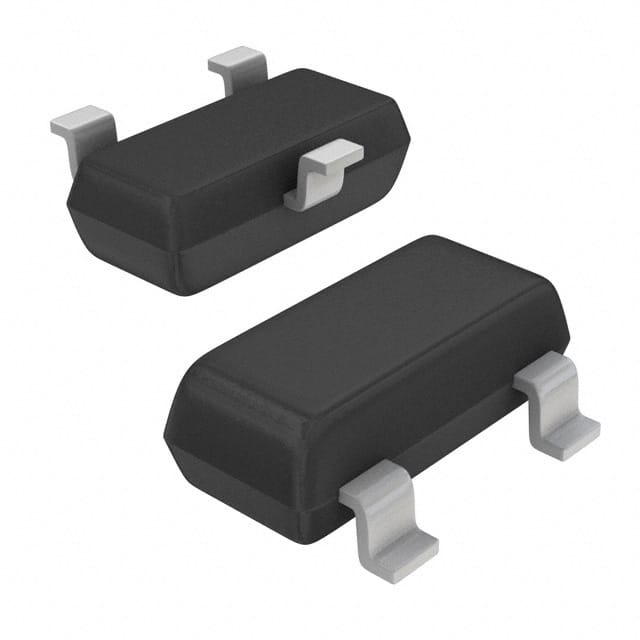

BAV199HMFHT116
BAV199HMFHT116
- In Stock: 0
- Manufacturer: Rohm Semiconductor
- Part Number: BAV199HMFHT116
- Detailed Description: DIODE ARRAY GP 80V 215MA SSD3
- Category: 分立半导体产品 | 二极管 - 整流器 - 二极管阵列
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.3120
10+
$0.2933
100+
$0.2777
1000+
$0.2621
10000+
$0.2465
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Rohm Semiconductor |
|---|---|
| 系列 | Automotive, AEC-Q101 |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 3000 |
| 产品状态 | 不适用于新设计 |
| 二极管配置 | 1 对串联 |
| 二极管类型 | 标准 |
| 电压 - DC 反向 (Vr)（最大值） | 80 V |
| 电流 - 平均整流 (Io)（每二极管） | 215mA（DC） |
| 不同 If 时电压 - 正向 (Vf) | 1.25 V @ 150 mA |
| 速度 | 标准恢复 >500ns，> 200mA（Io） |
| 反向恢复时间 (trr) | 3 µs |
| 不同 Vr 时电流 - 反向泄漏 | 5 nA @ 75 V |
| 工作温度 - 结 | 150°C（最大） |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | TO-236-3，SC-59，SOT-23-3 |
| 供应商器件封装 | SSD3 |
| 基本产品编号 | BAV199 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
