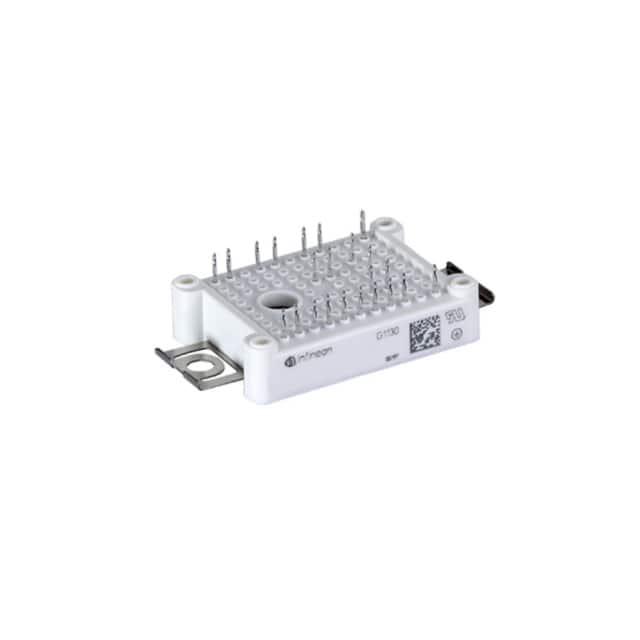

DDB6U75N16W1RB11BOMA1
DDB6U75N16W1RB11BOMA1
- In Stock: 0
- Manufacturer: Infineon Technologies
- Part Number: DDB6U75N16W1RB11BOMA1
- Detailed Description: IGBT 模块 沟槽型场截止 三相反相器 1200 V 69 A 335 W 底座安装 模块
- Category: 分立半导体产品 | 晶体管 - IGBT - IGBT 模块
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$87.6750
10+
$82.4145
100+
$78.0308
1000+
$73.6470
10000+
$69.2633
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Infineon Technologies |
|---|---|
| 系列 | EasyBRIDGE |
| 包装 | 散装 |
| 标准包装 | 24 |
| 产品状态 | 在售 |
| IGBT 类型 | 沟槽型场截止 |
| 配置 | 三相反相器 |
| 电压 - 集射极击穿（最大值） | 1200 V |
| 电流 - 集电极 (Ic)（最大值） | 69 A |
| 功率 - 最大值 | 335 W |
| 不同 Vge、Ic 时 Vce(on)（最大值） | 2.15V @ 15V，50A |
| 电流 - 集电极截止（最大值） | 1 mA |
| 不同 Vce 时输入电容 (Cies) | 2.8 nF @ 25 V |
| 输入 | 标准 |
| NTC 热敏电阻 | 是 |
| 工作温度 | -40°C ~ 150°C |
| 安装类型 | 底座安装 |
| 封装/外壳 | 模块 |
| 供应商器件封装 | 模块 |
| 基本产品编号 | DDB6U75 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
