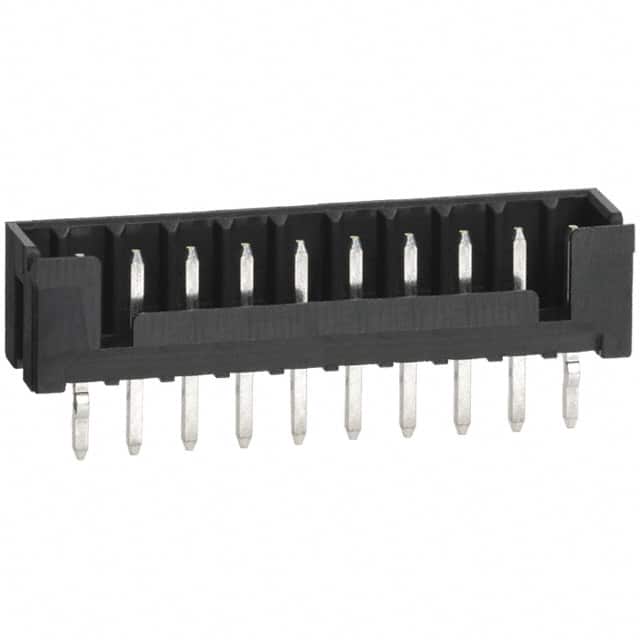

DF3A-10P-2DSA
DF3A-10P-2DSA
- In Stock: 0
- Manufacturer: Hirose Electric Co Ltd
- Part Number: DF3A-10P-2DSA
- Detailed Description: CONN HEADER VERT 10POS 2MM
- Category: 连接器，互连器件 | 矩形连接器 - 针座，公插针
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.5400
10+
$0.5076
100+
$0.4806
1000+
$0.4536
10000+
$0.4266
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Hirose Electric Co Ltd |
|---|---|
| 系列 | DF3 |
| 包装 | 散装 |
| 标准包装 | 100 |
| 产品状态 | 在售 |
| 连接器类型 | 接头 |
| 触头类型 | 公形引脚 |
| 间距 - 配接 | 0.079"（2.00mm） |
| 针位数 | 10 |
| 排数 | 1 |
| 排距 - 配接 | - |
| 加载的针位数 | 所有 |
| 样式 | 板至板或电缆 |
| 护罩 | 带遮蔽 - 4 墙 |
| 安装类型 | 通孔 |
| 端接 | 压接，焊接 |
| 紧固类型 | 推挽式 |
| 接触长度 - 配接 | 0.122"（3.10mm） |
| 接触长度 - 柱 | 0.114"（2.90mm） |
| 总体接触长度 | 0.299"（7.60mm） |
| 绝缘高度 | 0.197"（5.00mm） |
| 触头形状 | 方形 |
| 触头表面处理 - 配接 | 锡 |
| 触头表面处理厚度 - 配接 | 39.4µin（1.00µm） |
| 触头表面处理 - 柱 | 锡 |
| 触头材料 | 黄铜 |
| 绝缘材料 | 聚酰胺（PA），尼龙 |
| 特性 | - |
| 工作温度 | -55°C ~ 105°C |
| 侵入防护 | - |
| 材料可燃性等级 | UL94 V-0 |
| 绝缘颜色 | 黑色 |
| 额定电流（安培） | 3A |
| 额定电压 | - |
| 接合堆叠高度 | 5mm |
| 触头表面处理厚度 - 柱 | - |
| 应用 | - |
| 基本产品编号 | DF3A |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
