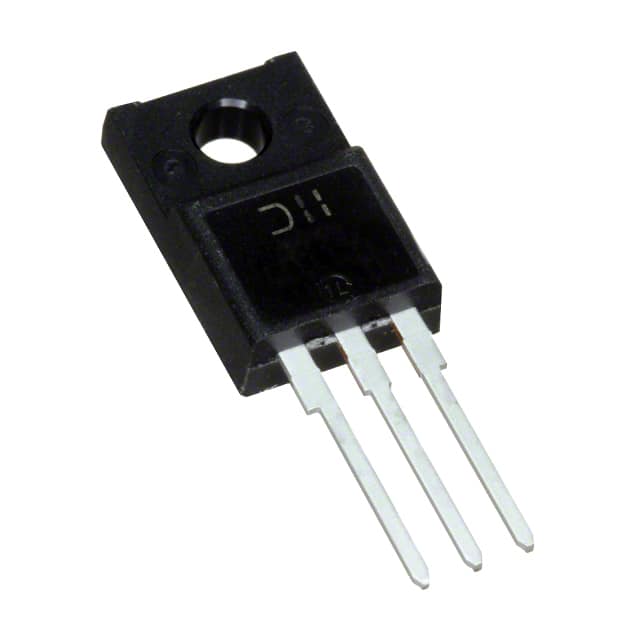

DGTD65T15H2TF
DGTD65T15H2TF
- In Stock: 0
- Manufacturer: Diodes Incorporated
- Part Number: DGTD65T15H2TF
- Detailed Description: IGBT 场截止 650 V 30 A 48 W 通孔 ITO-220AB
- Category: 分立半导体产品 | 晶体管 - IGBT - 单 IGBT
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.4240
10+
$2.2786
100+
$2.1574
1000+
$2.0362
10000+
$1.9150
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Diodes Incorporated |
|---|---|
| 系列 | - |
| 包装 | 管件 |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| IGBT 类型 | 场截止 |
| 电压 - 集射极击穿（最大值） | 650 V |
| 电流 - 集电极 (Ic)（最大值） | 30 A |
| 电流 - 集电极脉冲 (Icm) | 60 A |
| 不同 Vge、Ic 时 Vce(on)（最大值） | 2V @ 15V，15A |
| 功率 - 最大值 | 48 W |
| 开关能量 | 270µJ（开），86µJ（关） |
| 输入类型 | 标准 |
| 栅极电荷 | 61 nC |
| 25°C 时 Td（开/关）值 | 19ns/128ns |
| 测试条件 | 400V，15A，10 欧姆，15V |
| 反向恢复时间 (trr) | 150 ns |
| 工作温度 | -40°C ~ 175°C（TJ） |
| 安装类型 | 通孔 |
| 封装/外壳 | TO-220-3 全封装，隔离接片 |
| 供应商器件封装 | ITO-220AB |
| 基本产品编号 | DGTD65 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 不适用 |
| REACH Status | REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
