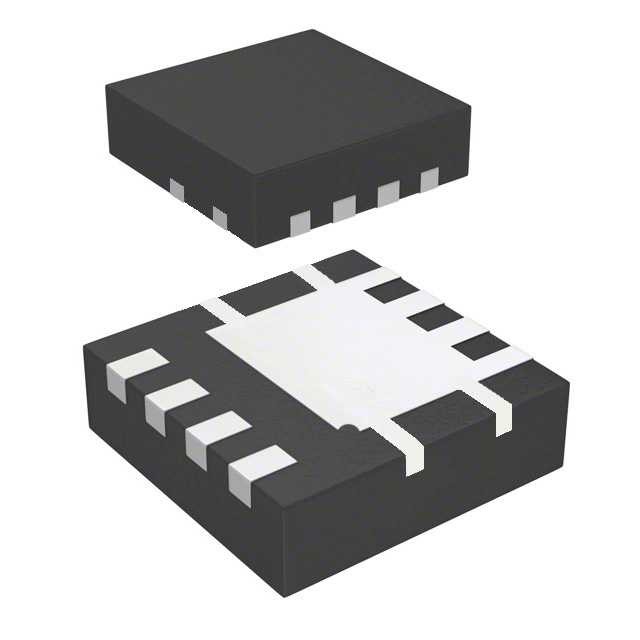

DMC3025LNS-13
DMC3025LNS-13
- In Stock: 0
- Manufacturer: Diodes Incorporated
- Part Number: DMC3025LNS-13
- Detailed Description: MOSFET - 阵列 N 和 P 沟道互补型 30V 7.2A（Ta），6.8A（Ta） 1.2W（Ta） 表面贴装型 PowerDI3333-8
- Category: 分立半导体产品 | 晶体管 - FET，MOSFET - FET、MOSFET 阵列
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.2693
10+
$0.2531
100+
$0.2397
1000+
$0.2262
10000+
$0.2127
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Diodes Incorporated |
|---|---|
| 系列 | Automotive, AEC-Q101 |
| 包装 | 卷带（TR） |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| FET 类型 | N 和 P 沟道互补型 |
| FET 功能 | 标准 |
| 漏源电压（Vdss） | 30V |
| 25°C 时电流 - 连续漏极 (Id) | 7.2A（Ta），6.8A（Ta） |
| 不同 Id、Vgs 时导通电阻（最大值） | 25 毫欧 @ 7A，10V，28 毫欧 @ 7A，10V |
| 不同 Id 时 Vgs(th)（最大值） | 2V @ 250µA |
| 不同 Vgs 时栅极电荷 (Qg)（最大值） | 4.6nC @ 4.5V，9.5nC @ 4.5V |
| 不同 Vds 时输入电容 (Ciss)（最大值） | 500pF @ 15V，1188pF @ 15V |
| 功率 - 最大值 | 1.2W（Ta） |
| 工作温度 | -55°C ~ 150°C（TJ） |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 8-PowerVDFN |
| 供应商器件封装 | PowerDI3333-8 |
| 基本产品编号 | DMC3025 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | |
| REACH Status | 非 REACH 产品 |
| ECCN | |
| HTSUS | 8541.29.0095 |
