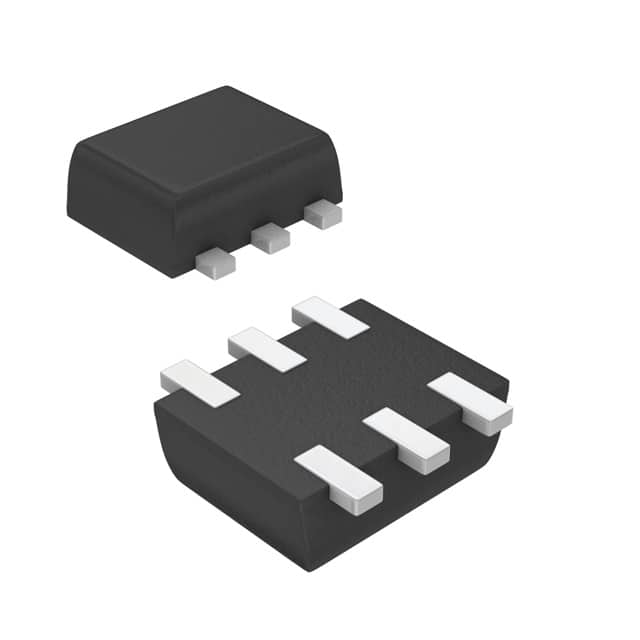

DMN33D9LV-13A
DMN33D9LV-13A
- In Stock: 0
- Manufacturer: Diodes Incorporated
- Part Number: DMN33D9LV-13A
- Detailed Description: MOSFET - 阵列 2 N-通道（双） 30V 350mA（Ta） 430mW（Ta） 表面贴装型 SOT-563
- Category: 分立半导体产品 | 晶体管 - FET，MOSFET - FET、MOSFET 阵列
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.1104
10+
$0.1038
100+
$0.0983
1000+
$0.0927
10000+
$0.0872
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Diodes Incorporated |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） |
| 标准包装 | 10000 |
| 产品状态 | 在售 |
| FET 类型 | 2 N-通道（双） |
| FET 功能 | 标准 |
| 漏源电压（Vdss） | 30V |
| 25°C 时电流 - 连续漏极 (Id) | 350mA（Ta） |
| 不同 Id、Vgs 时导通电阻（最大值） | 2.4 欧姆 @ 250mA，10V |
| 不同 Id 时 Vgs(th)（最大值） | 1.4V @ 100µA |
| 不同 Vgs 时栅极电荷 (Qg)（最大值） | 1.23nC @ 10V |
| 不同 Vds 时输入电容 (Ciss)（最大值） | 48pF @ 5V |
| 功率 - 最大值 | 430mW（Ta） |
| 工作温度 | -55°C ~ 150°C（TJ） |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | SOT-563，SOT-666 |
| 供应商器件封装 | SOT-563 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
