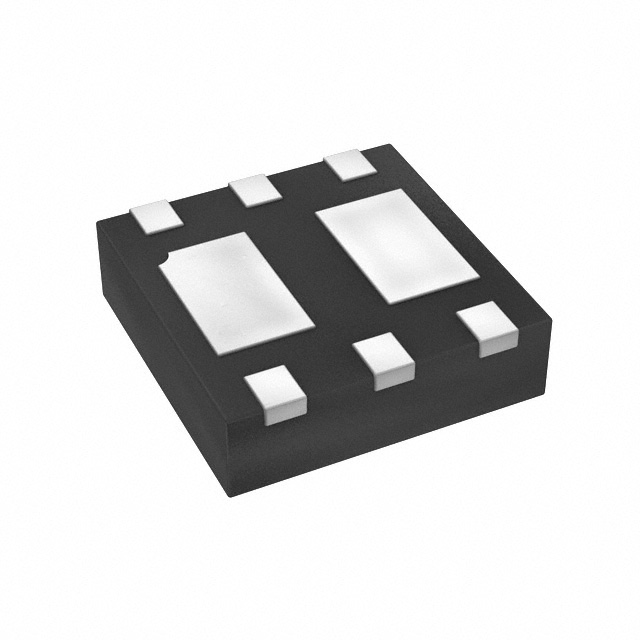

DMP2060UFDB-7
DMP2060UFDB-7
- In Stock: 0
- Manufacturer: Diodes Incorporated
- Part Number: DMP2060UFDB-7
- Detailed Description: MOSFET - 阵列 2 个 P 沟道（双） 20V 3.2A 1.4W 表面贴装型 U-DFN2020-6（B 类）
- Category: 分立半导体产品 | 晶体管 - FET，MOSFET - FET、MOSFET 阵列
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.0440
10+
$0.9814
100+
$0.9292
1000+
$0.8770
10000+
$0.8248
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Diodes Incorporated |
|---|---|
| 系列 | =- |
| 包装 | =卷带（TR） | 剪切带（CT） |
| 标准包装 | =3000 |
| 产品状态 | =在售 |
| FET 类型 | =2 个 P 沟道（双） |
| FET 功能 | =标准 |
| 漏源电压（Vdss） | =20V |
| 25°C 时电流 - 连续漏极 (Id) | =3.2A |
| 不同 Id、Vgs 时导通电阻（最大值） | =90 毫欧 @ 2.9A，4.5V |
| 不同 Id 时 Vgs(th)（最大值） | =1.4V @ 250µA |
| 不同 Vgs 时栅极电荷 (Qg)（最大值） | =18nC @ 8V |
| 不同 Vds 时输入电容 (Ciss)（最大值） | =881pF @ 10V |
| 功率 - 最大值 | =1.4W |
| 工作温度 | =-55°C ~ 150°C（TJ） |
| 安装类型 | =表面贴装型 |
| 封装/外壳 | =6-UDFN 裸露焊盘 |
| 供应商器件封装 | =U-DFN2020-6（B 类） |
| 基本产品编号 | =DMP2060 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | |
| HTSUS | 8541.29.0095 |
