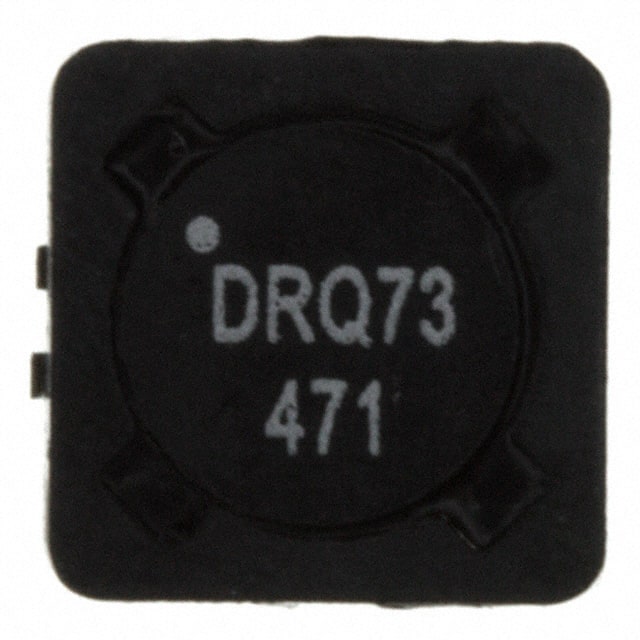

DRQ73-471-R
DRQ73-471-R
- In Stock: 0
- Manufacturer: Eaton - Electronics Division
- Part Number: DRQ73-471-R
- Detailed Description: 屏蔽 2 线圈电感器阵列 1.863 mH 电感 - 串联连接 465.8 µH 电感 - 并联连接 2.36 欧姆 直流电阻 (DCR) - 并联 350 mA 非标准
- Category: 电感器，线圈，扼流圈 | 阵列，信号转换器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.5440
10+
$2.3914
100+
$2.2642
1000+
$2.1370
10000+
$2.0098
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Eaton - Electronics Division |
|---|---|
| 系列 | DRQ |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 1350 |
| 产品状态 | 在售 |
| 线圈数 | 2 |
| 电感 - 并联连接 | 465.8 µH |
| 电感 - 串联连接 | 1.863 mH |
| 容差 | ±20% |
| 额定电流 - 并联 | 350 mA |
| 额定电流 - 串联 | 173 mA |
| 饱和电流 - 并联 | 370 mA |
| 饱和电流 - 串联 | 180 mA |
| DC 电阻 (DCR) - 并联 | 2.36 欧姆 |
| DC 电阻 (DCR) - 串联 | 9.44 欧姆 |
| 屏蔽 | 屏蔽 |
| 等级 | - |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 非标准 |
| 大小 / 尺寸 | 0.299" 长 x 0.299" 宽（7.60mm x 7.60mm） |
| 高度 | 0.140"（3.55mm） |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
