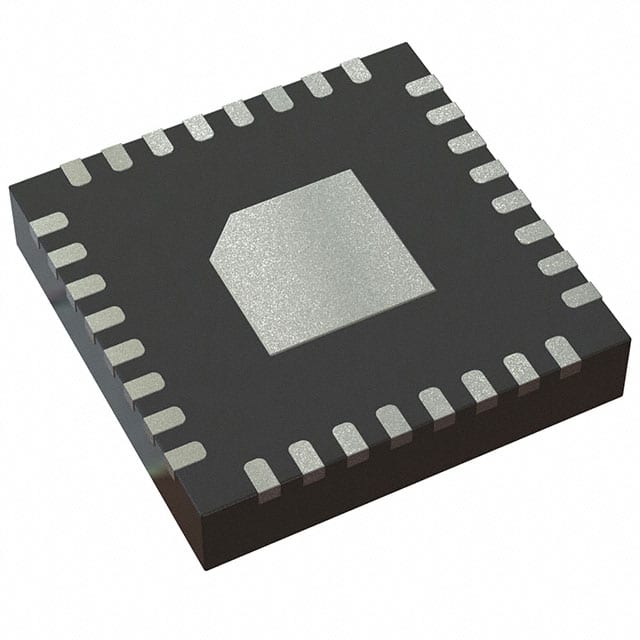

DRV8705HQRHBRQ1
DRV8705HQRHBRQ1
- In Stock: 0
- Manufacturer: Texas Instruments
- Part Number: DRV8705HQRHBRQ1
- Detailed Description: 双极性 电机驱动器 功率 MOSFET PWM，SPI 32-VQFN（5x5）
- Category: 集成电路（IC） | 电源管理（PMIC） - 电机驱动器，控制器
- RoHS Status： 不适用
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.6002
10+
$1.5042
100+
$1.4242
1000+
$1.3442
10000+
$1.2642
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| 系列 | Automotive, AEC-Q100 |
| 包装 | 卷带（TR） |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 电机类型 - 步进 | 双极性 |
| 电机类型 - AC，DC | 有刷直流 |
| 功能 | 控制器 - 换向，方向管理 |
| 输出配置 | 半桥（2） |
| 接口 | PWM，SPI |
| 技术 | 功率 MOSFET |
| 步进分辨率 | - |
| 应用 | 汽车级 |
| 电流 - 输出 | 15mA |
| 电压 - 供电 | 4.9V ~ 37V |
| 电压 - 负载 | - |
| 工作温度 | -40°C ~ 125°C（TA） |
| 安装类型 | 表面贴装，可润湿侧翼 |
| 封装/外壳 | 32-VFQFN 裸露焊盘 |
| 供应商器件封装 | 32-VQFN（5x5） |
| 基本产品编号 | DRV8705 |
Environmental & Export
| RoHS Status | 不适用 |
|---|---|
| Moisture Sensitivity Level (MSL) | 2（1 年） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
