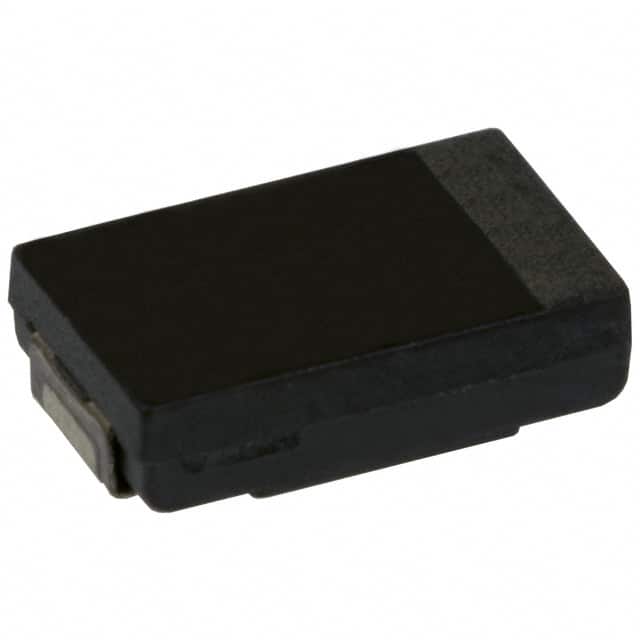

EEF-SX0D271R
EEF-SX0D271R
- In Stock: 0
- Manufacturer: Panasonic Electronic Components
- Part Number: EEF-SX0D271R
- Detailed Description: 270 µF 2 V 铝聚合物电容器 2917（7343 公制） 9 毫欧 105°C 时为 2000 小时
- Category: 电容器 | 铝 - 聚合物电容器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.1120
10+
$1.9853
100+
$1.8797
1000+
$1.7741
10000+
$1.6685
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Panasonic Electronic Components |
|---|---|
| 系列 | SP-Cap SX |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 3500 |
| 产品状态 | 不适用于新设计 |
| 类型 | 聚合物 |
| 电容 | 270 µF |
| 容差 | ±20% |
| 电压 - 额定 | 2 V |
| ESR（等效串联电阻） | 9 毫欧 |
| 不同温度时使用寿命 | 105°C 时为 2000 小时 |
| 工作温度 | -55°C ~ 105°C |
| 等级 | - |
| 应用 | 通用 |
| 引线间距 | - |
| 大小 / 尺寸 | 0.287" 长 x 0.169" 宽（7.30mm x 4.30mm） |
| 高度 - 安装（最大值） | 0.079"（2.00mm） |
| 表面贴装焊盘尺寸 | - |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 2917（7343 公制） |
| 基本产品编号 | EEF-SX |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 不适用 |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8532.22.0020 |
