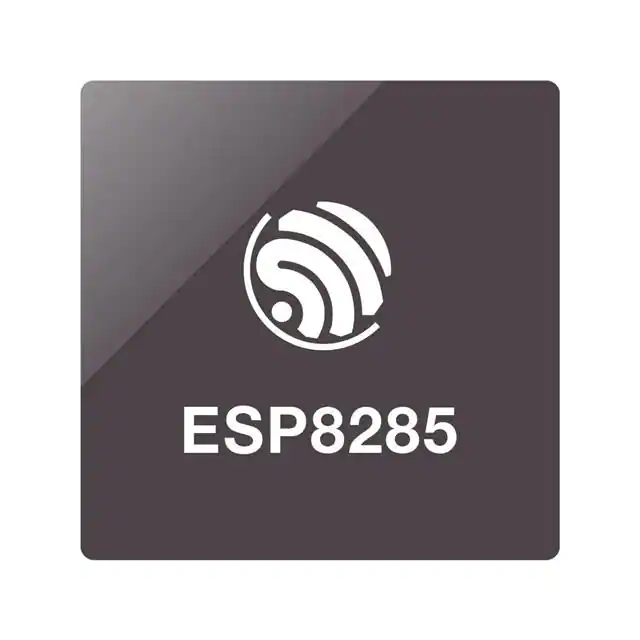

ESP8285H16
ESP8285H16
- In Stock: 0
- Manufacturer: Espressif Systems
- Part Number: ESP8285H16
- Detailed Description: IC RF TXRX+MCU WIFI 32VFQFN
- Category: 射频和无线 | 射频收发器 IC
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.4400
10+
$1.3536
100+
$1.2816
1000+
$1.2096
10000+
$1.1376
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Espressif Systems |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 5000 |
| 产品状态 | 在售 |
| 类型 | TxRx + MCU |
| 射频系列/标准 | WiFi |
| 协议 | 802.11b/g/n |
| 调制 | - |
| 频率 | 2.4GHz |
| 数据速率（最大值） | 54Mbps |
| 功率 - 输出 | 20dBm |
| 灵敏度 | -91dBm |
| 存储容量 | - |
| 串行接口 | I²C，I²S，SPI，UART |
| GPIO | 8 |
| 电压 - 供电 | 2.7V ~ 3.6V |
| 电流 - 接收 | 50mA ~ 56mA |
| 电流 - 传输 | 120mA ~ 170mA |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 32-VFQFN 裸露焊盘 |
| 供应商器件封装 | 32-QFN（5x5） |
| 基本产品编号 | ESP8285 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | 5A992C |
| HTSUS | 8542.39.0001 |
