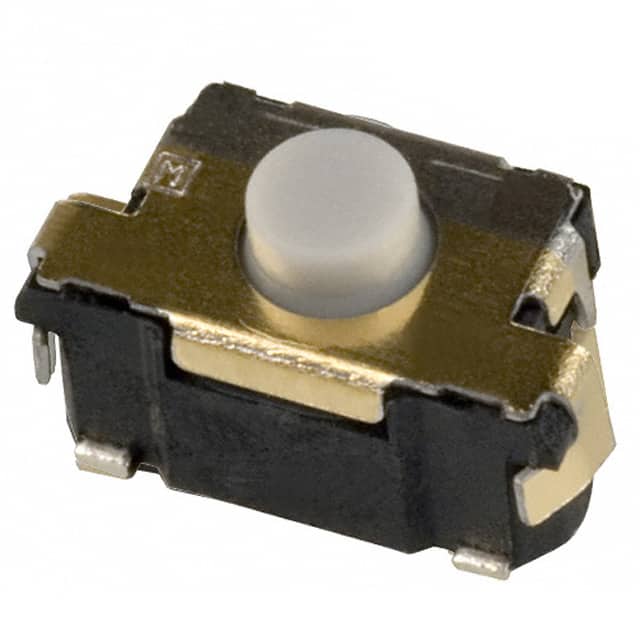

EVQ-P4KB3Q
EVQ-P4KB3Q
- Available: 2500
- Manufacturer: Panasonic Electronic Components
- Part Number: EVQ-P4KB3Q
- Detailed Description: SWITCH TACTILE SPST-NO 0.02A 15V
- Category: 开关 | 触摸开关
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.1760
10+
$1.1054
100+
$1.0466
1000+
$0.9878
10000+
$0.9290
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Panasonic Electronic Components |
|---|---|
| 系列 | =EVQP4 |
| 包装 | =卷带（TR） | 剪切带（CT） |
| 标准包装 | =2500 |
| 产品状态 | =在售 |
| 电路 | =SPST-NO |
| 开关功能 | =关-瞬时 |
| 不同电压时额定接触电流 | =0.02A @ 15VDC |
| 致动器类型 | =标准 |
| 安装类型 | =边缘安装，直角 |
| 致动器离 PCB 高度，垂直 | =- |
| 致动器长度，直角 | =2.50mm |
| 致动器方向 | =侧面触动 |
| 端接样式 | =SMD（SMT）接片 |
| 外形 | =6.20mm x 2.55mm |
| 照明 | =不发光 |
| 照明类型，颜色 | =- |
| 照明电压（标称值） | =- |
| 操作力 | =350gf |
| 侵入防护 | =- |
| 特性 | =- |
| 工作温度 | =-40°C ~ 85°C |
| 致动器材料 | =- |
| 开关行程 | =0.70mm |
| 机械寿命 | =500，000 次循环 |
| 基本产品编号 | =EVQ-P4 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.50.9031 |
