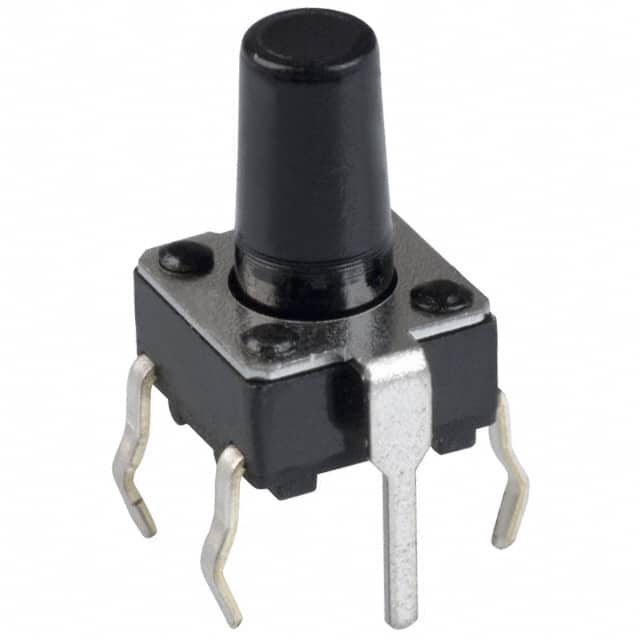

EVQ-PBC09K
EVQ-PBC09K
- In Stock: 0
- Manufacturer: Panasonic Electronic Components
- Part Number: EVQ-PBC09K
- Detailed Description: SWITCH TACTILE SPST-NO 0.02A 15V
- Category: 开关 | 触摸开关
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Panasonic Electronic Components |
|---|---|
| 系列 | EVQPB |
| 包装 | 散装 |
| 标准包装 | 500 |
| 产品状态 | 停产 |
| 电路 | SPST-NO |
| 开关功能 | 关-瞬时 |
| 不同电压时额定接触电流 | 0.02A @ 15VDC |
| 致动器类型 | 标准 |
| 安装类型 | 通孔 |
| 致动器离 PCB 高度，垂直 | 9.50mm |
| 致动器长度，直角 | - |
| 致动器方向 | 顶部触动 |
| 端接样式 | PC 引脚 |
| 外形 | 6.00mm x 6.00mm |
| 照明 | 不发光 |
| 照明类型，颜色 | - |
| 照明电压（标称值） | - |
| 操作力 | 100gf |
| 侵入防护 | - |
| 特性 | 接地引脚 |
| 工作温度 | -20°C ~ 70°C |
| 致动器材料 | - |
| 开关行程 | 0.25mm |
| 机械寿命 | 100，000 次循环 |
| 基本产品编号 | EVQ-PB |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.50.9031 |
