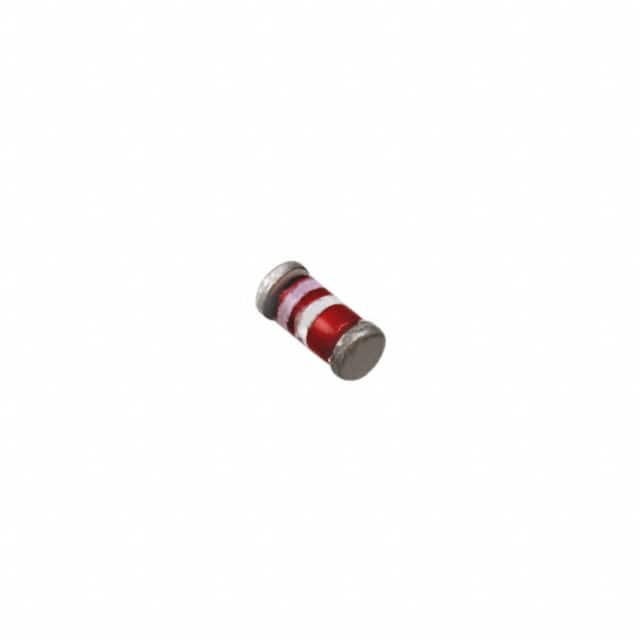

JANTX1N4117UR-1
JANTX1N4117UR-1
- In Stock: 0
- Manufacturer: MACOM Technology Solutions
- Part Number: JANTX1N4117UR-1
- Detailed Description: 二极管 - 齐纳 25 V 500 mW ±5% 表面贴装型 DO-213AA
- Category: 分立半导体产品 | 二极管 - 齐纳 - 单齐纳二极管
- RoHS Status： 不符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$11.8320
10+
$11.1221
100+
$10.5305
1000+
$9.9389
10000+
$9.3473
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | MACOM Technology Solutions |
|---|---|
| 系列 | Military, MIL-PRF-19500/435 |
| 包装 | - |
| 标准包装 | 1 |
| 产品状态 | 停止提供 |
| 电压 - 齐纳（标称值）(Vz) | 25 V |
| 容差 | ±5% |
| 功率 - 最大值 | 500 mW |
| 阻抗（最大值）(Zzt) | 150 Ohms |
| 不同 Vr 时电流 - 反向泄漏 | 10 nA @ 19 V |
| 不同 If 时电压 - 正向 (Vf) | 1.1 V @ 200 mA |
| 工作温度 | -65°C ~ 175°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | DO-213AA（玻璃） |
| 供应商器件封装 | DO-213AA |
Environmental & Export
| RoHS Status | 不符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8541.10.0050 |
