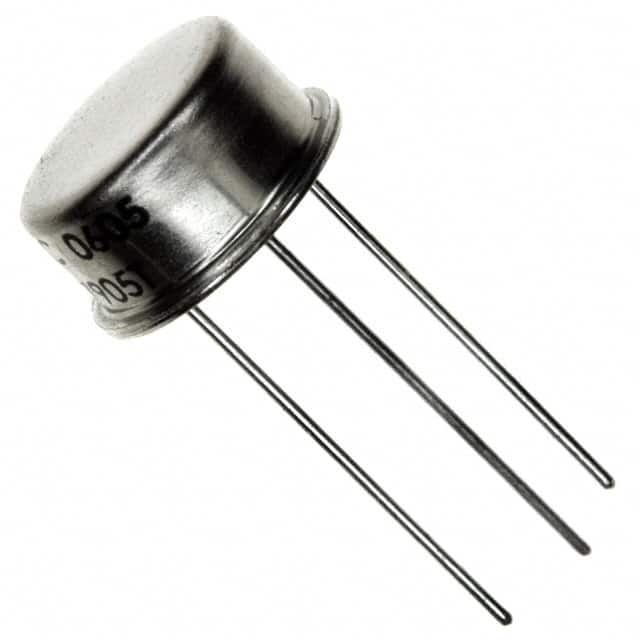

JANTXV2N5154
JANTXV2N5154
- In Stock: 0
- Manufacturer: MACOM Technology Solutions
- Part Number: JANTXV2N5154
- Detailed Description: 晶体管 - 双极 (BJT) - 单 NPN 80 V 2 A 1 W 通孔 TO-39（TO-205AD）
- Category: 分立半导体产品 | 晶体管 - 双极（BJT） - 单双极晶体管
- RoHS Status： 不符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$20.8320
10+
$19.5821
100+
$18.5405
1000+
$17.4989
10000+
$16.4573
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | MACOM Technology Solutions |
|---|---|
| 系列 | Military, MIL-PRF-19500/544 |
| 包装 | 散装 |
| 标准包装 | 1 |
| 产品状态 | - |
| 晶体管类型 | NPN |
| 电流 - 集电极 (Ic)（最大值） | 2 A |
| 电压 - 集射极击穿（最大值） | 80 V |
| 不同 Ib、Ic 时 Vce 饱和压降（最大值） | 1.5V @ 500mA，5A |
| 电流 - 集电极截止（最大值） | 50µA |
| 不同 Ic、Vce 时 DC 电流增益 (hFE)（最小值） | 70 @ 2.5A，5V |
| 功率 - 最大值 | 1 W |
| 频率 - 跃迁 | - |
| 工作温度 | -65°C ~ 200°C（TJ） |
| 安装类型 | 通孔 |
| 封装/外壳 | TO-205AD，TO-39-3 金属罐 |
| 供应商器件封装 | TO-39（TO-205AD） |
Environmental & Export
| RoHS Status | 不符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
