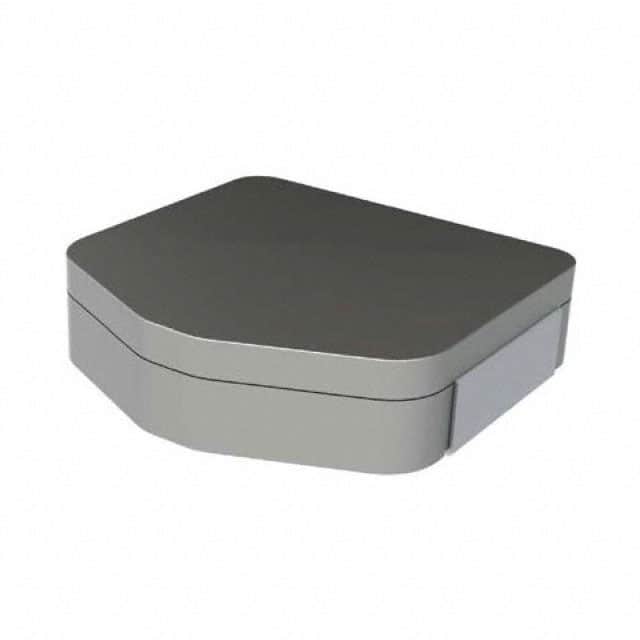

MPX1D2213L150
MPX1D2213L150
- In Stock: 0
- Manufacturer: KEMET
- Part Number: MPX1D2213L150
- Detailed Description: FIXED IND 15UH 27.5A 6.8MOHM SMD
- Category: 电感器，线圈，扼流圈 | 固定电感器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$14.3040
10+
$13.4458
100+
$12.7306
1000+
$12.0154
10000+
$11.3002
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | KEMET |
|---|---|
| 系列 | METCOM MPX |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 50 |
| 产品状态 | 在售 |
| 类型 | 鼓芯，绕线式 |
| 材料 - 磁芯 | 金属合成物 |
| 电感 | 15 µH |
| 容差 | ±20% |
| 额定电流（安培） | 27.5 A |
| 电流 - 饱和 （Isat） | 30A |
| 屏蔽 | 屏蔽 |
| DC 电阻 (DCR) | 6.8 毫欧最大 |
| 不同频率时 Q 值 | - |
| 频率 - 自谐振 | 4MHz |
| 等级 | - |
| 工作温度 | -55°C ~ 155°C |
| 电感频率 - 测试 | 100 kHz |
| 特性 | - |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 非标准 |
| 供应商器件封装 | - |
| 大小 / 尺寸 | 0.886" 长 x 0.866" 宽（22.50mm x 22.00mm） |
| 高度 - 安装（最大值） | 0.512"（13.00mm） |
| 基本产品编号 | MPX1D2213 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
