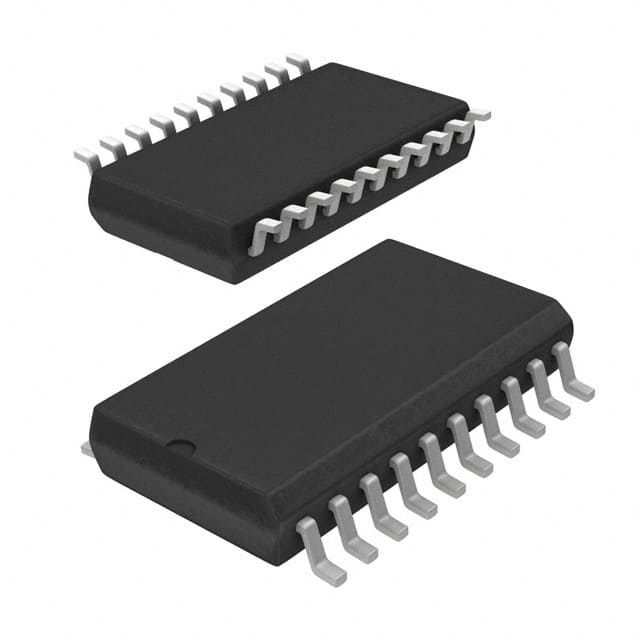

N74F534D,623
N74F534D,623
- In Stock: 0
- Manufacturer: NXP USA Inc.
- Part Number: N74F534D,623
- Detailed Description: 触发器 1 元件 D 型 8 位 正边沿 20-SOIC（0.295"，7.50mm 宽）
- Category: 集成电路（IC） | 逻辑 - 触发器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | NXP USA Inc. |
|---|---|
| 系列 | 74F |
| 包装 | 卷带（TR） |
| 标准包装 | 2000 |
| 产品状态 | 停产 |
| 功能 | 标准 |
| 类型 | D 型 |
| 输出类型 | 三态，反相 |
| 元件数 | 1 |
| 每个元件位数 | 8 |
| 时钟频率 | 165 MHz |
| 不同 V、最大 CL 时最大传播延迟 | 7ns @ 5V，50pF |
| 触发器类型 | 正边沿 |
| 电流 - 输出高、低 | 3mA，24mA |
| 电压 - 供电 | 4.5V ~ 5.5V |
| 电流 - 静态 (Iq) | 86 mA |
| 工作温度 | 0°C ~ 70°C（TA） |
| 安装类型 | 表面贴装型 |
| 供应商器件封装 | 20-SO |
| 封装/外壳 | 20-SOIC（0.295"，7.50mm 宽） |
| 基本产品编号 | N74F5 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
