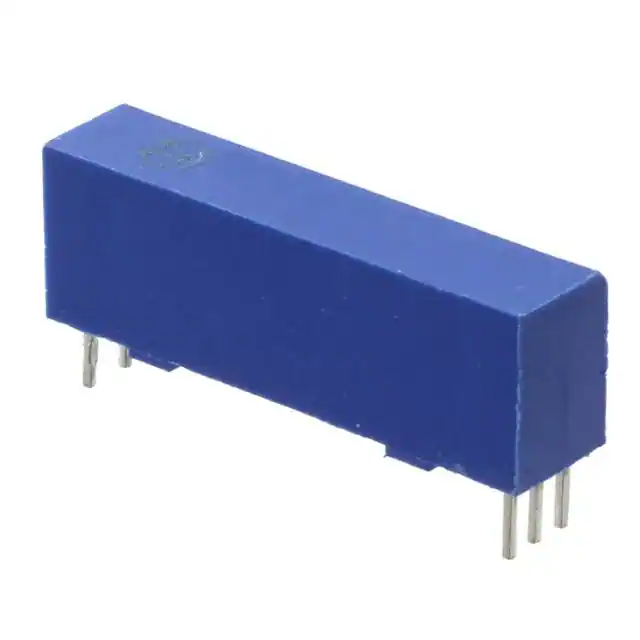

OPI1268
OPI1268
- Available: 1550
- Manufacturer: TT Electronics/Optek Technology
- Part Number: OPI1268
- Detailed Description: OPTOISO 16KV OPEN COLLECTOR
- Category: 隔离器 | 光隔离器 - 逻辑输出光隔离器
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$8.7480
10+
$8.2231
100+
$7.7857
1000+
$7.3483
10000+
$6.9109
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TT Electronics/Optek Technology |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 50 |
| 产品状态 | 在售 |
| 通道数 | 1 |
| 输入 - 侧 1/侧 2 | 1/0 |
| 电压 - 隔离 | 16000VDC |
| 共模瞬变抗扰度（最小值） | - |
| 输入类型 | DC |
| 输出类型 | 开路集电极 |
| 电流 - 输出/通道 | 25 mA |
| 数据速率 | 2Mbps |
| 传播延迟 tpLH / tpHL（最大值） | 200ns，100ns |
| 上升/下降时间（典型值） | - |
| 电压 - 正向 (Vf)（典型值） | 1.3V |
| 电流 - DC 正向 (If)（最大值） | 30mA |
| 电压 - 供电 | 7V |
| 工作温度 | -40°C ~ 100°C |
| 安装类型 | 通孔 |
| 封装/外壳 | 6-DIP（1.100"，27.94mm），5 引线 |
| 供应商器件封装 | - |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
