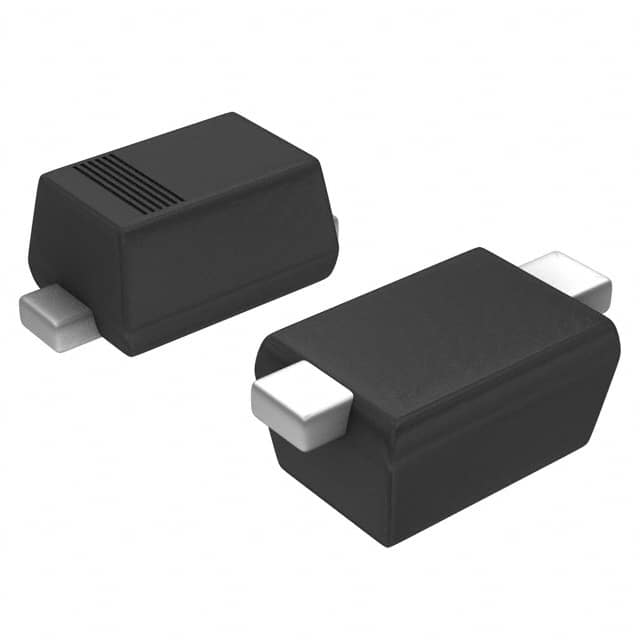

PESD5Z7.0,115
PESD5Z7.0,115
- Available: 3000
- Manufacturer: Nexperia USA Inc.
- Part Number: PESD5Z7.0,115
- Detailed Description: 19V 夹子 10A（8/20µs） Ipp TVS - 二极管 表面贴装型 SOD-523
- Category: 电路保护 | 瞬态电压抑制器（TVS） - TVS 二极管
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.3600
10+
$0.3384
100+
$0.3204
1000+
$0.3024
10000+
$0.2844
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Nexperia USA Inc. |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 类型 | 齐纳 |
| 单向通道 | 1 |
| 电压 - 反向断态（典型值） | 7V（最大） |
| 电压 - 击穿（最小值） | 7.5V |
| 不同 Ipp 时电压 - 箝位（最大值） | 19V |
| 电流 - 峰值脉冲 (10/1000µs) | 10A（8/20µs） |
| 功率 - 峰值脉冲 | 180W |
| 电源线路保护 | 无 |
| 应用 | 以太网 |
| 不同频率时电容 | 69pF @ 1MHz |
| 工作温度 | -65°C ~ 150°C（TA） |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | SC-79，SOD-523 |
| 供应商器件封装 | SOD-523 |
| 基本产品编号 | PESD5Z7.0 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
