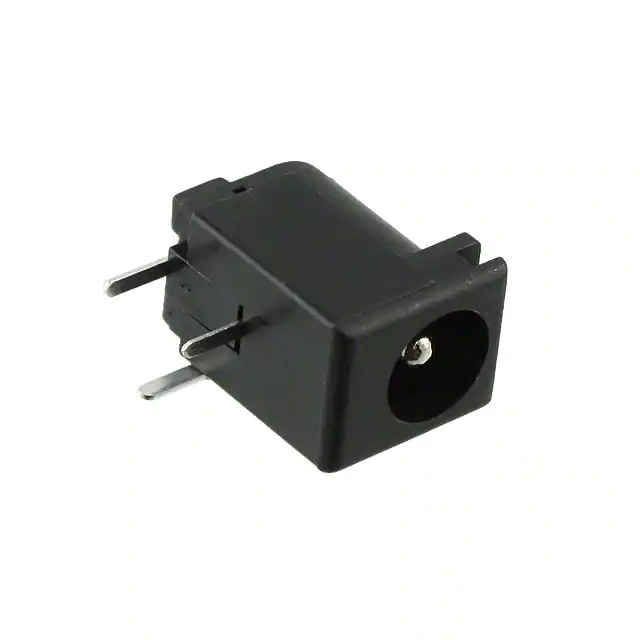

PJ-102AH
PJ-102AH
- Available: 10000
- Manufacturer: CUI Devices
- Part Number: PJ-102AH
- Detailed Description: CONN PWR JACK 2X5.5MM SOLDER
- Category: 连接器，互连器件 | 套管连接器 - 电源连接器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.9840
10+
$0.9250
100+
$0.8758
1000+
$0.8266
10000+
$0.7774
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | CUI Devices |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 280 |
| 产品状态 | 在售 |
| 连接器类型 | 插孔 |
| 公母 | 公头 |
| 业内公认的配接直径 | 2.00mm 内径（0.079"），5.50mm 外径（0.217"） |
| 实际直径 | 0.079"（2.00mm 内径），0.256"（6.50mm 外径） |
| 针位/触头数 | 2 导线，3 触点 |
| 内部开关 | 单开关，常闭 |
| 安装类型 | 通孔，直角 |
| 安装特性 | - |
| 端接 | 焊接 |
| 屏蔽 | 无屏蔽 |
| 特性 | - |
| 绝缘颜色 | - |
| 电压 - 额定 | 24VDC |
| 额定电流（安培） | 5 A |
| 配接长度/深度 | 0.354"（9.00mm） |
| 侵入防护 | - |
| 材料可燃性等级 | UL94 V-0 |
| 触头材料 - 镀层 | 银 |
| 基体材料 | - |
| 工作温度 | -25°C ~ 85°C |
| 包括 | - |
| 外壳材料 | 聚对苯二甲酸丁二酯（PBT） |
| 触头材料 | 黄铜，铜合金 |
| 螺纹规格 | - |
| 本体颜色 | 黑色 |
| 基本产品编号 | PJ-102 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
