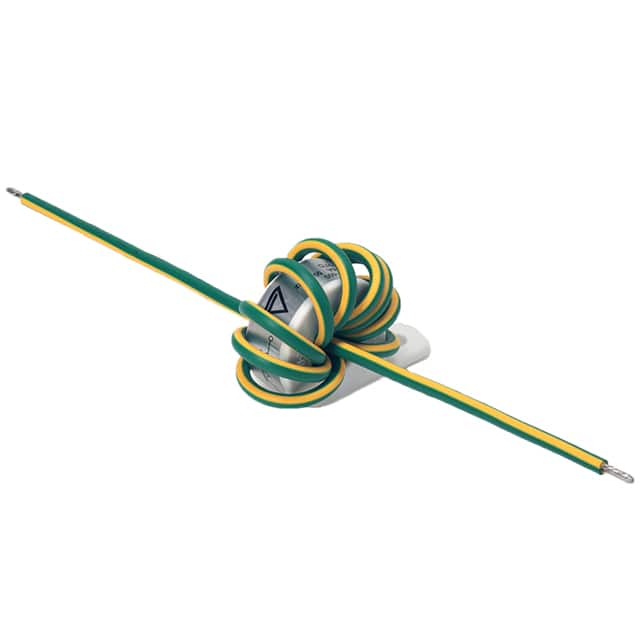

SNG-25DB-086
SNG-25DB-086
- In Stock: 0
- Manufacturer: KEMET
- Part Number: SNG-25DB-086
- Detailed Description: FIXED IND 86UH 20 MOHM CHAS MNT
- Category: 电感器，线圈，扼流圈 | 固定电感器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$9.0360
10+
$8.4938
100+
$8.0420
1000+
$7.5902
10000+
$7.1384
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | KEMET |
|---|---|
| 系列 | SNG |
| 包装 | 散装 |
| 标准包装 | 250 |
| 产品状态 | 在售 |
| 类型 | 鼓芯，绕线式 |
| 材料 - 磁芯 | 镍锌铁氧体（NiZn） |
| 电感 | 86 µH |
| 容差 | -30%，+50% |
| 电流 - 饱和 （Isat） | - |
| 屏蔽 | 无屏蔽 |
| DC 电阻 (DCR) | 20 毫欧最大 |
| 不同频率时 Q 值 | - |
| 频率 - 自谐振 | - |
| 等级 | - |
| 工作温度 | -25°C ~ 105°C |
| 电感频率 - 测试 | 160 kHz |
| 特性 | - |
| 安装类型 | 底座安装 |
| 封装/外壳 | 垂直，2 根引线 |
| 供应商器件封装 | - |
| 大小 / 尺寸 | 1.929" 长 x 0.945" 宽（49.00mm x 24.00mm） |
| 高度 - 安装（最大值） | 1.535"（39.00mm） |
| 基本产品编号 | SNG-25 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
