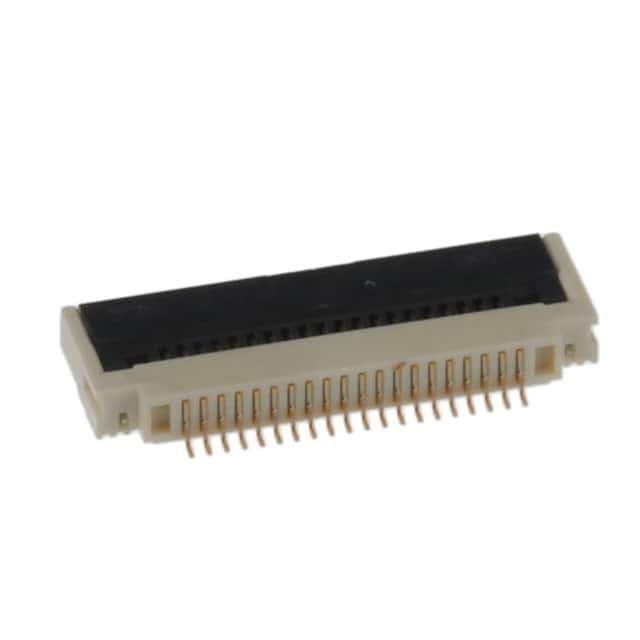

TF31-20S-0.5SH(800)
.jpg)
TF31-20S-0.5SH(800)
- In Stock: 0
- Manufacturer: Hirose Electric Co Ltd
- Part Number: TF31-20S-0.5SH(800)
- Detailed Description: 20 位置 FFC，FPC 连接器 触点，底部 0.020"（0.50mm） 表面贴装，直角
- Category: 连接器，互连器件 | FFC、FPC（扁平柔性）连接器组件
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.2920
10+
$2.1545
100+
$2.0399
1000+
$1.9253
10000+
$1.8107
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Hirose Electric Co Ltd |
|---|---|
| 系列 | TF31 |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 扁平柔性类型 | FFC，FPC |
| 安装类型 | 表面贴装，直角 |
| 连接器/触头类型 | 触点，底部 |
| 针位数 | 20 |
| 间距 | 0.020"（0.50mm） |
| 端接 | 焊接 |
| FFC、FCB 厚度 | 0.30mm |
| 板上高度 | 0.069"（1.75mm） |
| 锁定功能 | 触发锁 |
| 电缆端类型 | 焊片式 |
| 触头材料 | 磷青铜 |
| 触头表面处理 | 镀金 |
| 外壳材料 | 液晶聚合物（LCP） |
| 致动器材料 | 液晶聚合物（LCP） |
| 特性 | 零插入力（ZIF） |
| 额定电压 | 50V |
| 工作温度 | -40°C ~ 85°C |
| 材料可燃性等级 | UL94 V-0 |
| 额定电流（安培） | 0.5A |
| 触头表面处理厚度 | 1.25µin（0.03µm） |
| 外壳颜色 | 米色 |
| 致动器颜色 | 黑色 |
| 配接次数 | 20 |
| 基本产品编号 | TF31 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4051 |
