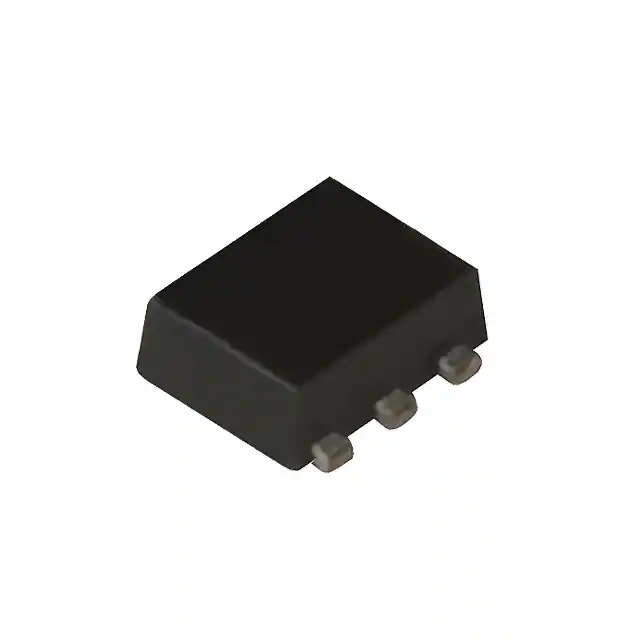

UPD5713TK-E2-A
UPD5713TK-E2-A
- Available: 1000
- Manufacturer: CEL
- Part Number: UPD5713TK-E2-A
- Detailed Description: IC RF SWITCH SPDT 2.5GHZ 6MINIM
- Category: 射频和无线 | 射频开关
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | CEL |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 5000 |
| 产品状态 | 停产 |
| 射频类型 | 802.15.1/蓝牙，手机，PCS，WLAN，WLL |
| 拓扑 | 反射 |
| 电路 | SPDT |
| 频率范围 | 50MHz ~ 2.5GHz |
| 隔离 | 22.5dB |
| 插损 | 0.95dB |
| 测试频率 | 2.5GHz |
| P1dB | 21dBm |
| IIP3 | - |
| 特性 | - |
| 阻抗 | 50 欧姆 |
| 电压 - 供电 | 1.8V ~ 3.6V |
| 工作温度 | -45°C ~ 85°C |
| 封装/外壳 | 6-SMD，扁平引线 |
| 供应商器件封装 | 6-迷你型模塑 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | 5A991G |
| HTSUS | 8542.39.0001 |
