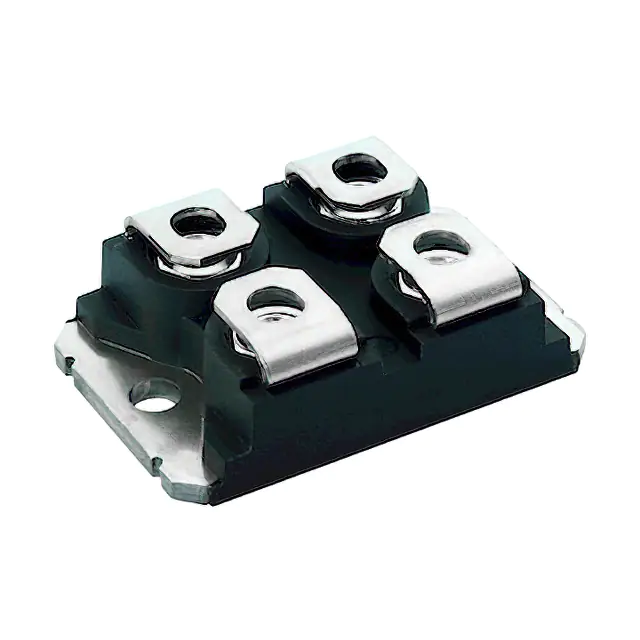

VS-GT250SA60S
VS-GT250SA60S
- In Stock: 0
- Manufacturer: Vishay General Semiconductor - Diodes Division
- Part Number: VS-GT250SA60S
- Detailed Description: IGBT MOD 600V 380A 893W SOT227
- Category: 分立半导体产品 | 晶体管 - IGBT - IGBT 模块
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$42.6946
10+
$40.1329
100+
$37.9982
1000+
$35.8634
10000+
$33.7287
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Vishay General Semiconductor - Diodes Division |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 1 |
| 产品状态 | 在售 |
| IGBT 类型 | 沟槽型场截止 |
| 配置 | 单路 |
| 电压 - 集射极击穿（最大值） | 600 V |
| 电流 - 集电极 (Ic)（最大值） | 359 A |
| 功率 - 最大值 | 750 W |
| 不同 Vge、Ic 时 Vce(on)（最大值） | 1.16V @ 15V，100A |
| 电流 - 集电极截止（最大值） | 100 µA |
| 不同 Vce 时输入电容 (Cies) | 24.2 nF @ 25 V |
| 输入 | 标准 |
| NTC 热敏电阻 | 无 |
| 工作温度 | -40°C ~ 175°C（TJ） |
| 安装类型 | 底座安装 |
| 封装/外壳 | SOT-227-4，miniBLOC |
| 供应商器件封装 | SOT-227 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
