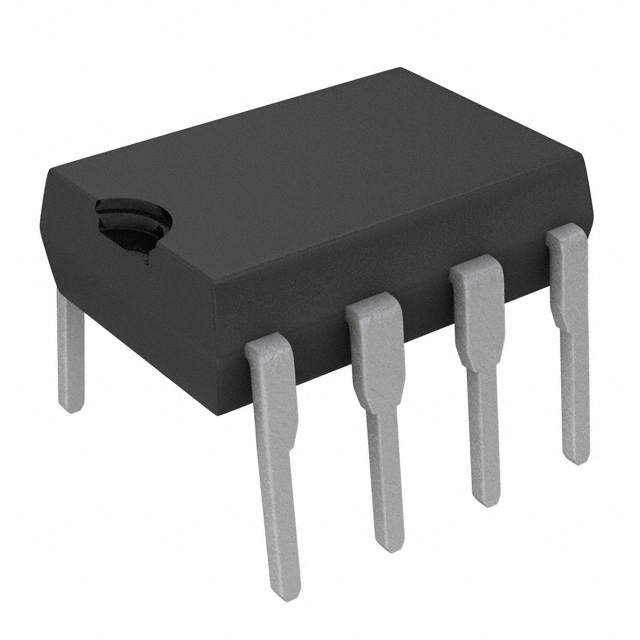

ZXBM5409Q-N-U
ZXBM5409Q-N-U
- In Stock: 0
- Manufacturer: Diodes Incorporated
- Part Number: ZXBM5409Q-N-U
- Detailed Description: 电机驱动器 功率 MOSFET 8-PDIP
- Category: 集成电路（IC） | 电源管理（PMIC） - 电机驱动器，控制器
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.2560
10+
$2.1206
100+
$2.0078
1000+
$1.8950
10000+
$1.7822
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Diodes Incorporated |
|---|---|
| 系列 | Automotive, AEC-Q100 |
| 包装 | 管件 |
| 标准包装 | 60 |
| 产品状态 | 在售 |
| 电机类型 - 步进 | - |
| 电机类型 - AC，DC | 有刷 DC，DC 伺服 |
| 功能 | 驱动器 - 全集成，控制和功率级 |
| 输出配置 | 半桥（2） |
| 接口 | - |
| 技术 | 功率 MOSFET |
| 步进分辨率 | - |
| 应用 | 汽车级 |
| 电流 - 输出 | 800mA |
| 电压 - 供电 | 8V ~ 18V |
| 电压 - 负载 | - |
| 工作温度 | -40°C ~ 125°C（TA） |
| 安装类型 | 通孔 |
| 封装/外壳 | 8-DIP（0.300"，7.62mm） |
| 供应商器件封装 | 8-PDIP |
| 基本产品编号 | ZXBM5409 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
