023003.5DRT1P
023003.5DRT1P
- Available: 4500
- Manufacturer: Littelfuse Inc.
- Part Number: 023003.5DRT1P

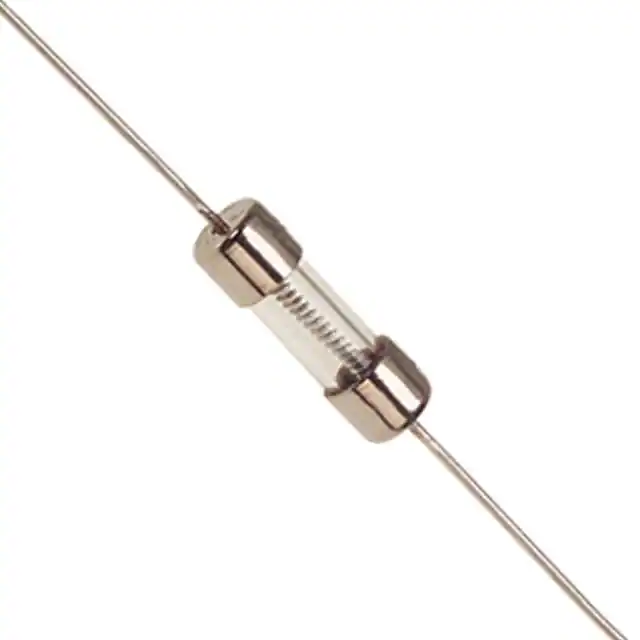

- Detailed Description: FUSE GLASS 3.5A 250VAC 125VDC
- Category: 电路保护 | 保险丝
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.7040
10+
$1.6018
100+
$1.5166
1000+
$1.4314
10000+
$1.3462
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Littelfuse Inc. |
|---|---|
| 系列 | 230 |
| 包装 | - |
| 标准包装 | 1500 |
| 产品状态 | 在售 |
| 安装类型 | 通孔 |
| 保险丝类型 | 管筒，玻璃 |
| 额定电流（安培） | 3.5 A |
| 额定电压 - AC | 250 V |
| 额定电压 - DC | 125 V |
| 响应时间 | 慢速熔断 |
| 封装/外壳 | 盒，非标准（轴向） |
| 不同额定电压时分断能力 | 100AAC，10kA DC |
| 融断 I²t | 110 |
| 认证机构 | CE，CSA，PSE，UL |
| 工作温度 | -55°C ~ 125°C |
| 颜色 | - |
| 大小 / 尺寸 | 0.177" 直径 x 0.571" 长（4.50mm x 14.50mm） |
| DC 冷态电阻 | 0.0312 Ohms |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 不适用 |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.10.0020 |
