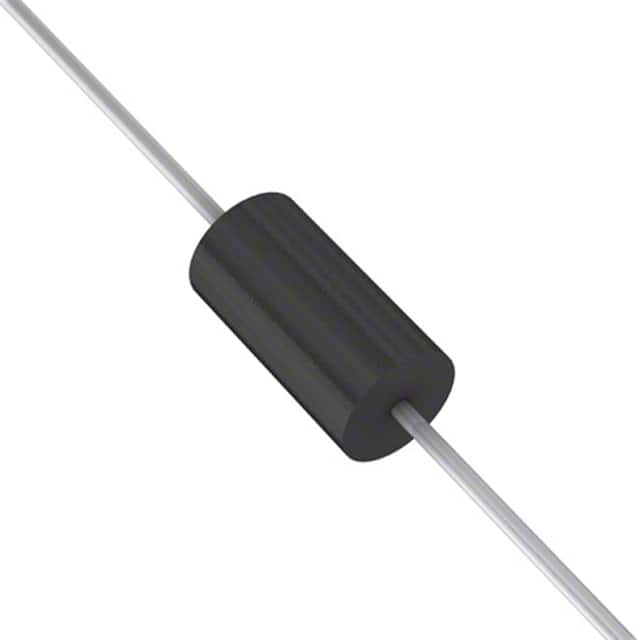

1N5229
1N5229
- In Stock: 0
- Manufacturer: SMC Diode Solutions
- Part Number: 1N5229
- Detailed Description: 二极管 - 齐纳 4.3 V 500 mW 通孔 DO-35
- Category: 分立半导体产品 | 二极管 - 齐纳 - 单齐纳二极管
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.1320
10+
$2.9441
100+
$2.7875
1000+
$2.6309
10000+
$2.4743
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | SMC Diode Solutions |
|---|---|
| 系列 | - |
| 包装 | 带盒（TB） |
| 标准包装 | - |
| 产品状态 | 停产 |
| 电压 - 齐纳（标称值）(Vz) | 4.3 V |
| 容差 | - |
| 功率 - 最大值 | 500 mW |
| 阻抗（最大值）(Zzt) | 22 Ohms |
| 不同 Vr 时电流 - 反向泄漏 | 5 µA @ 950 mV |
| 不同 If 时电压 - 正向 (Vf) | 1.1 V @ 200 mA |
| 工作温度 | 200°C |
| 安装类型 | 通孔 |
| 封装/外壳 | DO-204AH，DO-35，轴向 |
| 供应商器件封装 | DO-35 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | |
| REACH Status | |
| ECCN | |
| HTSUS |
