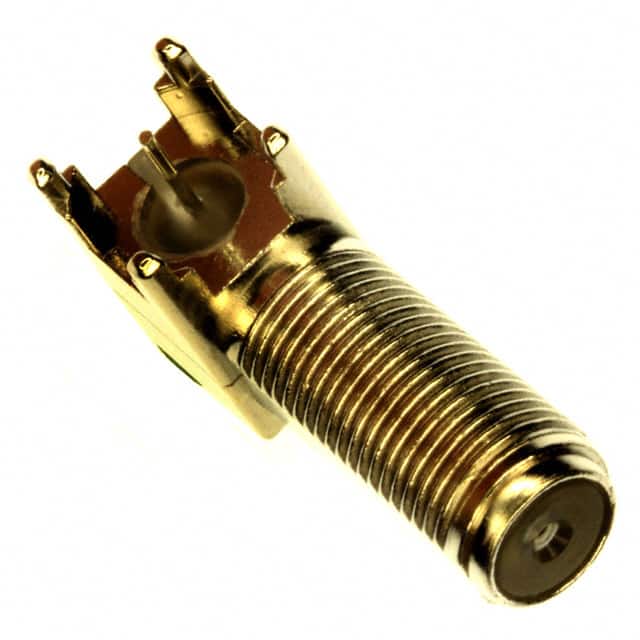

5-1634540-1
5-1634540-1
- In Stock: 0
- Manufacturer: TE Connectivity AMP Connectors
- Part Number: 5-1634540-1
- Detailed Description: CONN F JACK R/A 75 OHM PCB
- Category: 连接器，互连器件 | 同轴连接器（RF）组件
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.7840
10+
$2.6170
100+
$2.4778
1000+
$2.3386
10000+
$2.1994
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity AMP Connectors |
|---|---|
| 系列 | ZDC, Greenpar |
| 包装 | 散装 |
| 标准包装 | 50 |
| 产品状态 | 停产 |
| 连接器样式 | F 型 |
| 连接器类型 | 插孔，母形插口 |
| 触头端接 | 焊接 |
| 保护端接 | 焊接 |
| 阻抗 | 75 欧姆 |
| 安装类型 | 面板安装，通孔，直角 |
| 安装特性 | 穿板式 - 前侧螺母 |
| 电缆组 | - |
| 紧固类型 | 有螺纹 |
| 频率 - 最大值 | 1 GHz |
| 端口数 | 1 |
| 特性 | - |
| 外壳颜色 | 银 |
| 侵入防护 | - |
| 中心触头材料 | 磷青铜 |
| 包括 | - |
| 基体材料 | 锌合金 |
| 基体表面 | 镍 |
| 中心触头镀层 | 锡 |
| 介电材料 | 聚甲基戊烯（PMP） |
| 工作温度 | -65°C ~ 85°C |
| 额定电压 | 500 V |
| 配接次数 | - |
| 插损 | - |
| 基本产品编号 | 1634540 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 未明确供应商 |
| ECCN | EAR99 |
| HTSUS | 8536.69.4010 |
