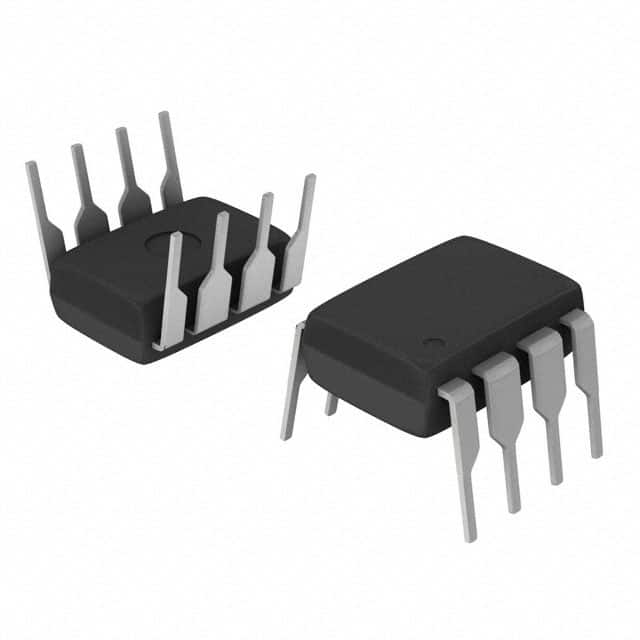

5962-0822702HPC
5962-0822702HPC
- In Stock: 0
- Manufacturer: Broadcom Limited
- Part Number: 5962-0822702HPC
- Detailed Description: 光隔离器 达林顿晶体管 输出 1500VDC 2 通道 8-DIP
- Category: 隔离器 | 光隔离器 - 晶体管，光电输出光隔离器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$149.7538
10+
$140.7685
100+
$133.2808
1000+
$125.7932
10000+
$118.3055
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 1 |
| 产品状态 | 在售 |
| 通道数 | 2 |
| 电压 - 隔离 | 1500VDC |
| 电流传输比（最小值） | 200% @ 5mA |
| 电流传输比（最大值） | - |
| 接通 / 关断时间（典型值） | 2µs，6µs |
| 上升/下降时间（典型值） | - |
| 输入类型 | DC |
| 输出类型 | 达林顿晶体管 |
| 电压 - 输出（最大值） | 20V |
| 电流 - 输出/通道 | 40mA |
| 电压 - 正向 (Vf)（典型值） | 1.4V |
| 电流 - DC 正向 (If)（最大值） | 10 mA |
| Vce 饱和压降（最大） | - |
| 工作温度 | -55°C ~ 125°C |
| 安装类型 | 通孔 |
| 封装/外壳 | 8-DIP（0.300"，7.62mm） |
| 供应商器件封装 | 8-DIP |
| 基本产品编号 | 5962-0822702 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
