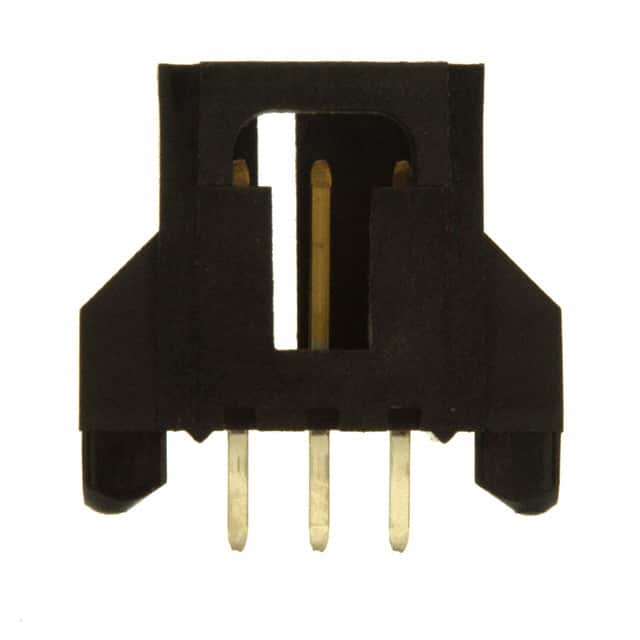

705450037
705450037
- In Stock: 0
- Manufacturer: Molex
- Part Number: 705450037
- Detailed Description: CONN HEADER VERT 3POS 2.54MM
- Category: 连接器，互连器件 | 矩形连接器 - 针座，公插针
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.3560
10+
$1.2746
100+
$1.2068
1000+
$1.1390
10000+
$1.0712
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Molex |
|---|---|
| 系列 | SL 70545 |
| 包装 | 管件 |
| 标准包装 | 35 |
| 产品状态 | 在售 |
| 连接器类型 | 接头 |
| 触头类型 | 公形引脚 |
| 间距 - 配接 | 0.100"（2.54mm） |
| 针位数 | 3 |
| 排数 | 1 |
| 排距 - 配接 | - |
| 加载的针位数 | 所有 |
| 样式 | 板至电缆/导线 |
| 护罩 | 带遮蔽 - 4 墙 |
| 安装类型 | 通孔 |
| 端接 | 焊接 |
| 紧固类型 | 锁存器支座 |
| 接触长度 - 配接 | 0.240"（6.10mm） |
| 接触长度 - 柱 | 0.130"（3.30mm） |
| 总体接触长度 | 0.470"（11.94mm） |
| 绝缘高度 | 0.465"（11.80mm） |
| 触头形状 | 方形 |
| 触头表面处理 - 配接 | 镀金 |
| 触头表面处理厚度 - 配接 | 15.0µin（0.38µm） |
| 触头表面处理 - 柱 | 锡 |
| 触头材料 | 磷青铜 |
| 绝缘材料 | 聚酯，玻璃纤维增强型 |
| 特性 | 板导轨 |
| 工作温度 | -40°C ~ 105°C |
| 侵入防护 | - |
| 材料可燃性等级 | UL94 V-0 |
| 绝缘颜色 | 黑色 |
| 额定电流（安培） | - |
| 额定电压 | 250V |
| 接合堆叠高度 | - |
| 触头表面处理厚度 - 柱 | 74.8µin（1.90µm） |
| 应用 | 汽车，通用，工业，医疗 |
| 基本产品编号 | 070545 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
