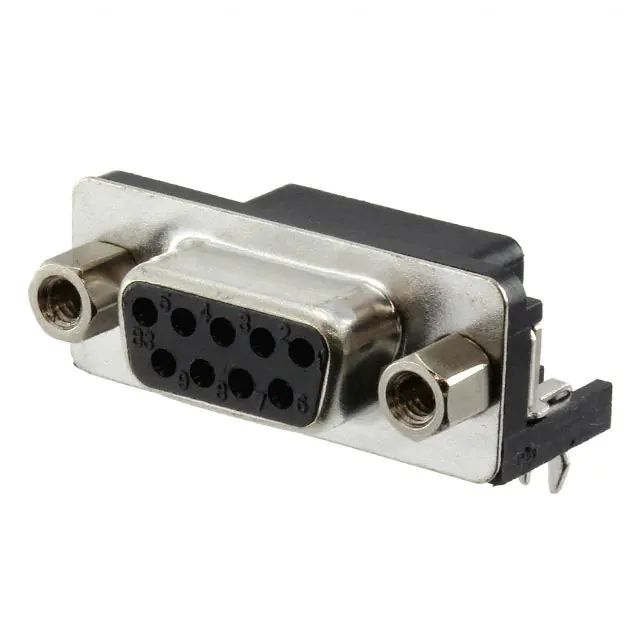

A-DF 09 A/KG-T2S
A-DF 09 A/KG-T2S
- In Stock: 0
- Manufacturer: Assmann WSW Components
- Part Number: A-DF 09 A/KG-T2S
- Detailed Description: CONN D-SUB RCPT 9POS R/A SLDR
- Category: 连接器，互连器件 | D-Sub 连接器组件
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.9360
10+
$0.8798
100+
$0.8330
1000+
$0.7862
10000+
$0.7394
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Assmann WSW Components |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 90 |
| 产品状态 | 在售 |
| 连接器样式 | D-Sub |
| 连接器类型 | 插座，母型插口 |
| 针位数 | 9 |
| 排数 | 2 |
| 安装类型 | 通孔，直角 |
| 外壳尺寸，连接器布局 | 1（DE，E） |
| 触头类型 | 信号 |
| 法兰特征 | 配接侧，母头防脱落螺丝（4-40） |
| 端接 | 焊接 |
| 外壳材料，表面处理 | 钢，镀锡 |
| 触头表面处理 | 镀金 |
| 触头表面处理厚度 | 闪存 |
| 侵入防护 | - |
| 材料可燃性等级 | UL94 V-0 |
| 额定电流（安培） | 3A |
| 倒退间距 | 0.319"（8.10mm） |
| 特性 | 板锁 |
| 额定电压 | 250V |
| 颜色 | 黑色 |
| 触头外形 | - |
| 介电材料 | 聚对苯二甲酸丁二酯（PBT），玻璃纤维增强型 |
| 线规 | - |
| 触头材料 | 铜合金 |
| 工作温度 | -55°C ~ 105°C |
| 基本产品编号 | A-DF 09 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
