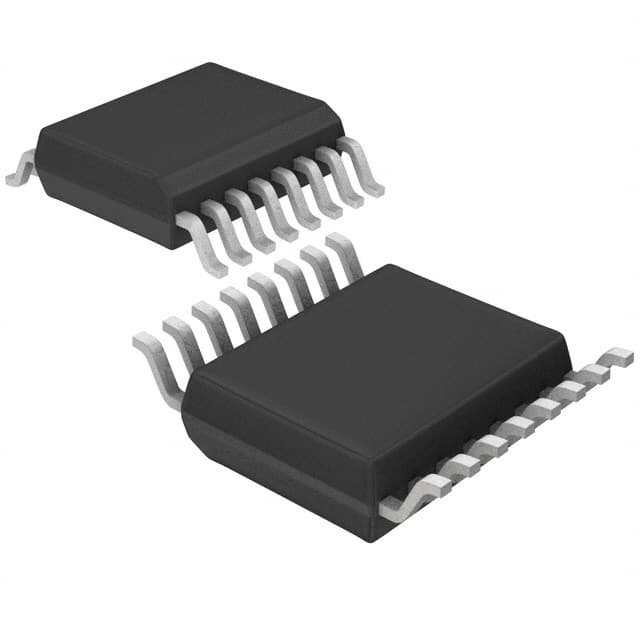

ACML-7410-000E
ACML-7410-000E
- In Stock: 0
- Manufacturer: Broadcom Limited
- Part Number: ACML-7410-000E
- Detailed Description: 通用 数字隔离器 5600Vrms 4 通道 100MBd 25kV/µs CMTI 16-SOIC（0.295"，7.50mm 宽）
- Category: 隔离器 | 数字隔离器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$12.7560
10+
$11.9906
100+
$11.3528
1000+
$10.7150
10000+
$10.0772
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| 系列 | - |
| 包装 | 管件 |
| 标准包装 | 45 |
| 产品状态 | 在售 |
| 技术 | 磁耦合 |
| 类型 | 通用 |
| 隔离式电源 | 无 |
| 通道数 | 4 |
| 输入 - 侧 1/侧 2 | 3/1 |
| 通道类型 | 单向 |
| 电压 - 隔离 | 5600Vrms |
| 共模瞬变抗扰度（最小值） | 25kV/µs |
| 数据速率 | 100MBd |
| 传播延迟 tpLH / tpHL（最大值） | 32ns，32ns |
| 脉宽失真（最大） | 2ns |
| 上升/下降时间（典型值） | 3ns，3ns |
| 电压 - 供电 | 3V ~ 3.6V，4.5V ~ 5.5V |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 16-SOIC（0.295"，7.50mm 宽） |
| 供应商器件封装 | 16-SOIC |
| 基本产品编号 | ACML-7410 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
