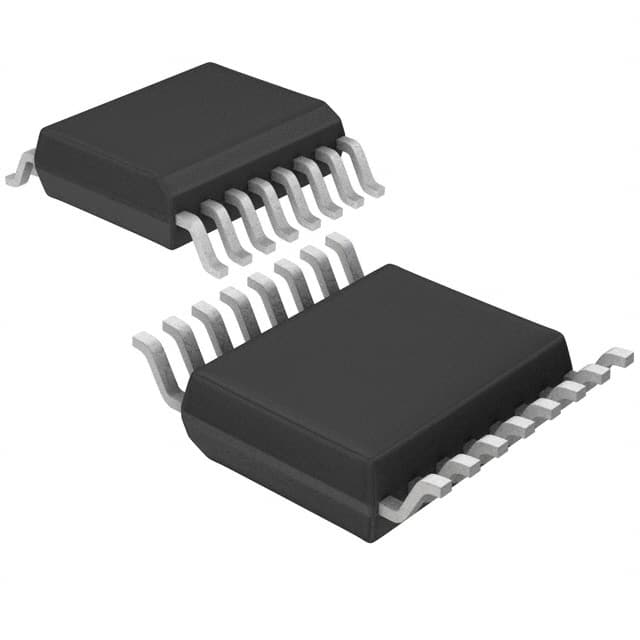

ACPL-337J-000E
ACPL-337J-000E
- In Stock: 0
- Manufacturer: Broadcom Limited
- Part Number: ACPL-337J-000E
- Detailed Description: 4A 栅极驱动器 光学耦合 5000Vrms 1 通道 16-SO
- Category: 隔离器 | 隔离器 - 栅极驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$9.0960
10+
$8.5502
100+
$8.0954
1000+
$7.6406
10000+
$7.1858
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| 系列 | - |
| 包装 | 散装 |
| 标准包装 | 45 |
| 产品状态 | 在售 |
| 技术 | 光学耦合 |
| 通道数 | 1 |
| 电压 - 隔离 | 5000Vrms |
| 共模瞬变抗扰度（最小值） | 30kV/µs |
| 传播延迟 tpLH / tpHL（最大值） | 220ns，250ns |
| 脉宽失真（最大） | 120ns |
| 上升/下降时间（典型值） | 80ns，45ns |
| 电流 - 输出高、低 | 3A，3A |
| 电流 - 峰值输出 | 4A |
| 电压 - 正向 (Vf)（典型值） | 1.55V |
| 电流 - DC 正向 (If)（最大值） | 20 mA |
| 电压 - 输出供电 | 15V ~ 30V |
| 工作温度 | -40°C ~ 105°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 16-SOIC（0.295"，7.50mm 宽） |
| 供应商器件封装 | 16-SO |
| 认证机构 | CSA，IEC/EN/DIN，UR |
| 基本产品编号 | ACPL-337 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
