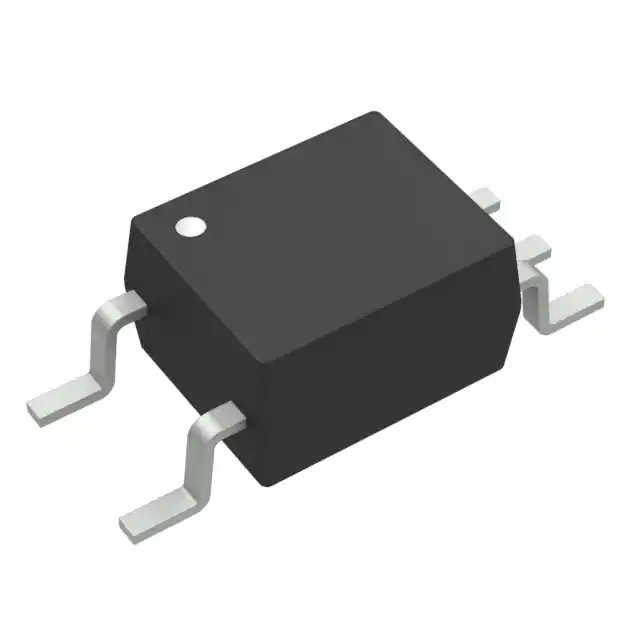

ACPL-M43T
ACPL-M43T
- Available: 10000
- Manufacturer: Broadcom Limited
- Part Number: ACPL-M43T
- Detailed Description: OPTOISOLATOR 4KV TRANSISTOR 5-SO
- Category: 隔离器 | 光隔离器 - 晶体管，光电输出光隔离器
- RoHS Status： 不符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$5.1906
10+
$4.8792
100+
$4.6196
1000+
$4.3601
10000+
$4.1006
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| 系列 | Automotive, AEC-Q100, R²Coupler™ |
| 包装 | - |
| 标准包装 | 100 |
| 产品状态 | 在售 |
| 通道数 | 1 |
| 电压 - 隔离 | 4000Vrms |
| 电流传输比（最小值） | 32% @ 10mA |
| 电流传输比（最大值） | 100% @ 10mA |
| 接通 / 关断时间（典型值） | 150ns，500ns |
| 上升/下降时间（典型值） | - |
| 输入类型 | DC |
| 输出类型 | 晶体管 |
| 电压 - 输出（最大值） | 20V |
| 电流 - 输出/通道 | 8mA |
| 电压 - 正向 (Vf)（典型值） | 1.55V |
| 电流 - DC 正向 (If)（最大值） | 20 mA |
| Vce 饱和压降（最大） | - |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 6-SOIC（0.173，4.40mm 宽），5 引线 |
| 供应商器件封装 | 5-SO |
| 基本产品编号 | ACPL-M43 |
Environmental & Export
| RoHS Status | 不符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
