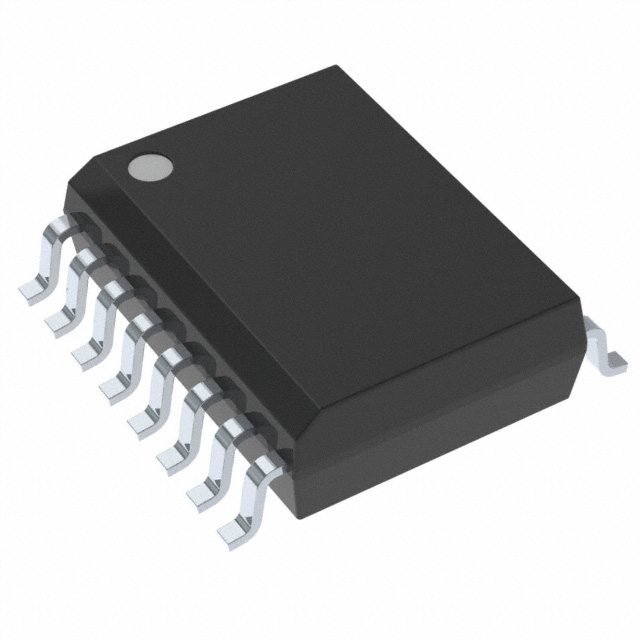

ADUM5201CRWZ-RL
ADUM5201CRWZ-RL
- Available: 1000
- Manufacturer: Analog Devices Inc.
- Part Number: ADUM5201CRWZ-RL
- Detailed Description: DGTL ISO 2500VRMS 2CH GP 16SOIC
- Category: 隔离器 | 数字隔离器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$15.8880
10+
$14.9347
100+
$14.1403
1000+
$13.3459
10000+
$12.5515
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc. |
|---|---|
| 系列 | IsoPower®, iCoupler® |
| 包装 | - |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| 技术 | 磁耦合 |
| 类型 | 通用 |
| 隔离式电源 | 是 |
| 通道数 | 2 |
| 输入 - 侧 1/侧 2 | 1/1 |
| 通道类型 | 单向 |
| 电压 - 隔离 | 2500Vrms |
| 共模瞬变抗扰度（最小值） | 25kV/µs |
| 数据速率 | 25Mbps |
| 传播延迟 tpLH / tpHL（最大值） | 60ns，60ns |
| 脉宽失真（最大） | 6ns |
| 上升/下降时间（典型值） | 2.5ns，2.5ns |
| 电压 - 供电 | 3V ~ 5.5V，4.5V ~ 5.5V |
| 工作温度 | -40°C ~ 105°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 16-SOIC（0.295，7.50mm 宽） |
| 供应商器件封装 | 16-SOIC |
| 基本产品编号 | ADUM5201 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
