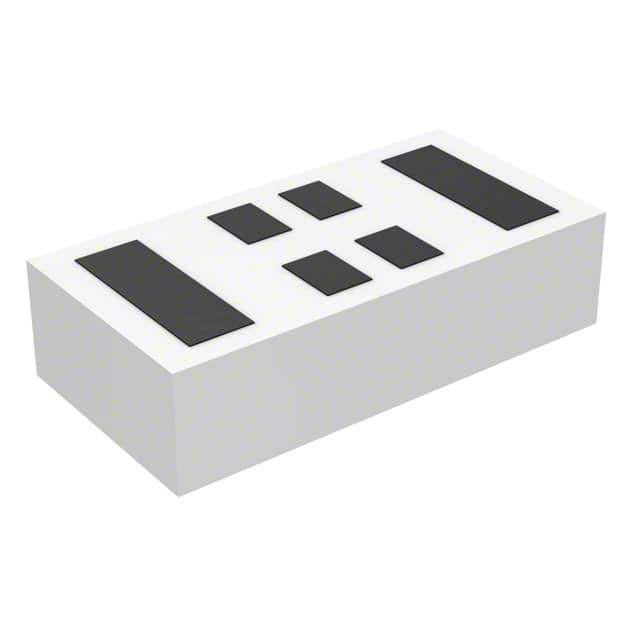

ANT016008LCD2442MA1
ANT016008LCD2442MA1
- In Stock: 0
- Manufacturer: TDK Corporation
- Part Number: ANT016008LCD2442MA1
- Detailed Description: 2.4GHz，5.5GHz WLAN 芯片 RF 天线 2.4GHz ~ 2.485GHz，5.15GHz ~ 5.85GHz 2.27dBi，5.18dBi 焊接 表面贴装型
- Category: 射频和无线 | RF 天线
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.9240
10+
$0.8686
100+
$0.8224
1000+
$0.7762
10000+
$0.7300
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TDK Corporation |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 4000 |
| 产品状态 | 最后售卖 |
| 射频系列/标准 | WiFi |
| 频率组 | UHF（2GHz ~ 3GHz），SHF（f > 4GHz） |
| 频率（中心/带） | 2.4GHz，5.5GHz |
| 频率范围 | 2.4GHz ~ 2.485GHz，5.15GHz ~ 5.85GHz |
| 天线类型 | 芯片 |
| 频带数 | 2 |
| VSWR | 6.5，4 |
| 回波损耗 | - |
| 增益 | 2.27dBi，5.18dBi |
| 特性 | - |
| 端接 | 焊接 |
| 侵入防护 | - |
| 安装类型 | 表面贴装型 |
| 高度（最大值） | 0.016"（0.40mm） |
| 应用 | WLAN |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8529.10.9100 |
