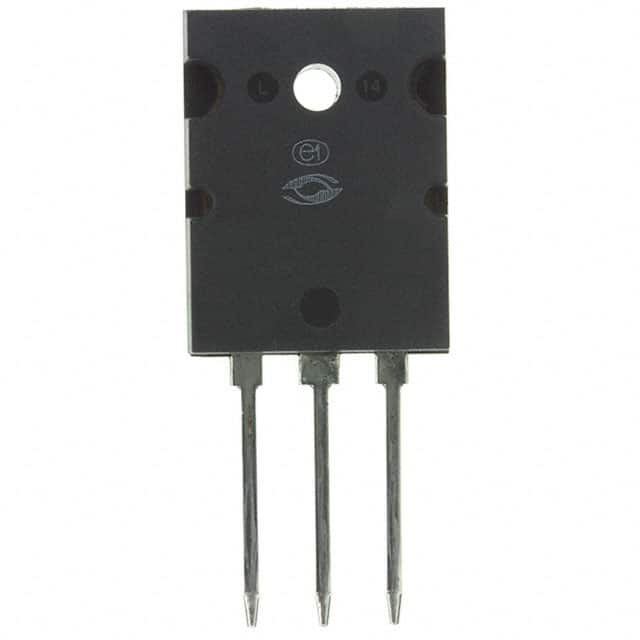

APT102GA60L
APT102GA60L
- In Stock: 0
- Manufacturer: Microchip Technology
- Part Number: APT102GA60L
- Detailed Description: IGBT 600V 183A 780W TO264
- Category: 分立半导体产品 | 晶体管 - IGBT - 单 IGBT
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$17.5030
10+
$16.4528
100+
$15.5776
1000+
$14.7025
10000+
$13.8273
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Microchip Technology |
|---|---|
| 系列 | - |
| 包装 | 管件 |
| 标准包装 | 1 |
| 产品状态 | 在售 |
| IGBT 类型 | PT |
| 电压 - 集射极击穿（最大值） | 600 V |
| 电流 - 集电极 (Ic)（最大值） | 183 A |
| 电流 - 集电极脉冲 (Icm) | 307 A |
| 不同 Vge、Ic 时 Vce(on)（最大值） | 2.5V @ 15V，62A |
| 功率 - 最大值 | 780 W |
| 开关能量 | 1.354mJ（开），1.614mJ（关） |
| 输入类型 | 标准 |
| 栅极电荷 | 294 nC |
| 25°C 时 Td（开/关）值 | 28ns/212ns |
| 测试条件 | 400V，62A，4.7 欧姆，15V |
| 工作温度 | -55°C ~ 150°C（TJ） |
| 安装类型 | 通孔 |
| 封装/外壳 | TO-264-3，TO-264AA |
| 供应商器件封装 | TO-264 [L] |
| 基本产品编号 | APT102 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
