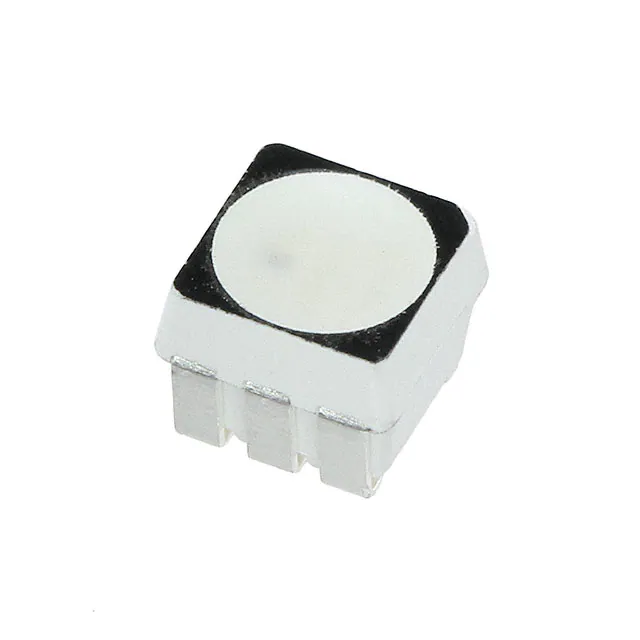

ASMB-TTB0-0A3A2
ASMB-TTB0-0A3A2
- Available: 1000
- Manufacturer: Broadcom Limited
- Part Number: ASMB-TTB0-0A3A2
- Detailed Description: LED RGB DIFFUSED 6PLCC SMD
- Category: 光电器件 | LED 指示 - 分立
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.5840
10+
$1.4890
100+
$1.4098
1000+
$1.3306
10000+
$1.2514
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 2000 |
| 产品状态 | 最后售卖 |
| 颜色 | 红色，绿色，蓝色（RGB） |
| 配置 | 独立式 |
| 透镜颜色 | - |
| 透镜透明度 | 散射 |
| 毫烛光等级 | 790mcd 红色，2400mcd 绿色，500mcd 蓝色 |
| 透镜样式 | 圆形，带平顶 |
| 透镜尺寸 | - |
| 电压 - 正向 (Vf)（典型值） | 2.1V 红色，2.9V 绿色，2.9V 蓝色 |
| 电流 - 测试 | 20mA 红色，20mA 绿色，20mA 蓝色 |
| 视角 | 115° |
| 安装类型 | 表面贴装型 |
| 波长 - 主 | 621nm 红色，530nm 绿色，470nm 蓝色 |
| 波长 - 峰值 | 635nm 红色，521nm 绿色，464nm 蓝色 |
| 特性 | - |
| 封装/外壳 | 6-SMD，J 引线 |
| 供应商器件封装 | 6-PLCC |
| 大小 / 尺寸 | 3.50mm 长 x 3.50mm 宽 |
| 高度（最大值） | 2.80mm |
| 基本产品编号 | ASMB-TTB0 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 4（72 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
