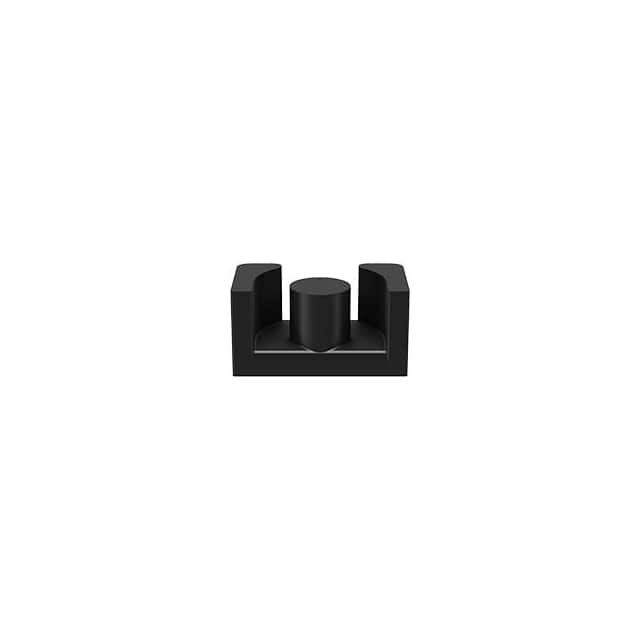

B65843P0000Y038
B65843P0000Y038
- In Stock: 0
- Manufacturer: EPCOS - TDK Electronics
- Part Number: B65843P0000Y038
- Detailed Description: FERRITE CORE EPO 6.6UH T38 2PCS
- Category: 磁性元件 - 变压器，电感器元件 | 铁氧体磁芯
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.2817
10+
$1.2048
100+
$1.1407
1000+
$1.0766
10000+
$1.0126
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | EPCOS - TDK Electronics |
|---|---|
| 系列 | EP13/LP |
| 包装 | 盒 |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| 磁心类型 | EPO |
| 供应商器件封装 | EPO 13 |
| 材料 | T38 |
| 直径 | - |
| 电感因数 (Al) | 6.6 µH |
| 容差 | -30%，+40% |
| 间隙 | 无缺口 |
| 有效磁导率 (µe) | 7020 |
| 初始磁导率 (µi) | 2300 |
| 磁心因数 (ΣI/A) mm1 | 1.34 |
| 有效长度 (le) mm | 25.8 |
| 有效面积 (Ae) mm² | 19.3 |
| 最小磁心横截面 (Amin) mm² | 14.9 |
| 有效磁体体积 (Ve) mm³ | 498 |
| 表面 | 无涂层 |
| 高度 | 0.256"（6.50mm） |
| 长度 | 0.504"（12.80mm） |
| 宽度 | 0.291"（7.40mm） |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.90.9630 |
