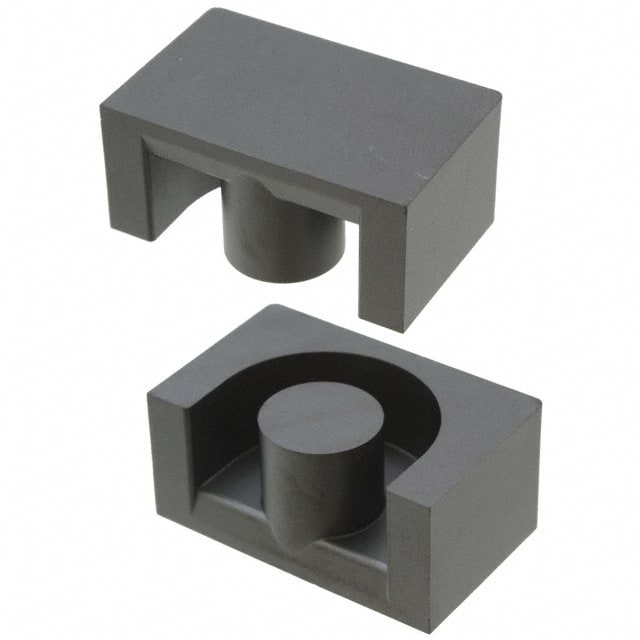

B65847A0000R030
B65847A0000R030
- In Stock: 0
- Manufacturer: EPCOS - TDK Electronics
- Part Number: B65847A0000R030
- Detailed Description: FERRITE CORE EP 6.7UH N30 2PCS
- Category: 磁性元件 - 变压器，电感器元件 | 铁氧体磁芯
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.7760
10+
$7.3094
100+
$6.9206
1000+
$6.5318
10000+
$6.1430
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | EPCOS - TDK Electronics |
|---|---|
| 系列 | EP20 |
| 包装 | 盒 |
| 标准包装 | 200 |
| 产品状态 | 在售 |
| 磁心类型 | EP |
| 供应商器件封装 | EP 20 |
| 材料 | N30 |
| 直径 | - |
| 电感因数 (Al) | 6.7 µH |
| 容差 | -20%，+30% |
| 间隙 | 无缺口 |
| 有效磁导率 (µe) | 2730 |
| 初始磁导率 (µi) | 5200 |
| 磁心因数 (ΣI/A) mm1 | 0.51 |
| 有效长度 (le) mm | 40 |
| 有效面积 (Ae) mm² | 78 |
| 最小磁心横截面 (Amin) mm² | 60 |
| 有效磁体体积 (Ve) mm³ | 3120 |
| 表面 | 无涂层 |
| 高度 | 0.425"（10.80mm） |
| 长度 | 0.965"（24.50mm） |
| 宽度 | 0.602"（15.30mm） |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.90.9630 |
