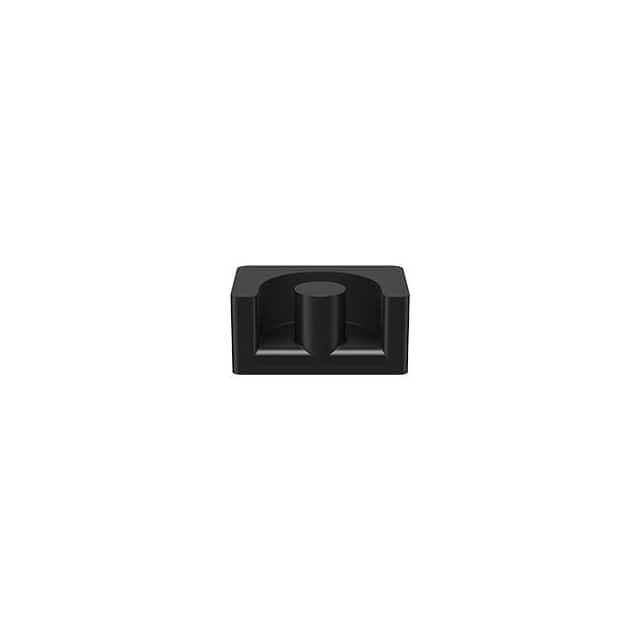

B65855A0000Y038
B65855A0000Y038
- In Stock: 0
- Manufacturer: EPCOS - TDK Electronics
- Part Number: B65855A0000Y038
- Detailed Description: FERRITE CORE EP 2UH T38 2PCS
- Category: 磁性元件 - 变压器，电感器元件 | 铁氧体磁芯
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.8772
10+
$0.8246
100+
$0.7807
1000+
$0.7368
10000+
$0.6930
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | EPCOS - TDK Electronics |
|---|---|
| 系列 | EP5 |
| 包装 | 盒 |
| 标准包装 | 4000 |
| 产品状态 | 在售 |
| 磁心类型 | EP |
| 供应商器件封装 | EP 5 |
| 材料 | T38 |
| 直径 | - |
| 电感因数 (Al) | 2 µH |
| 容差 | -30%，+40% |
| 间隙 | 无缺口 |
| 有效磁导率 (µe) | 5000 |
| 初始磁导率 (µi) | 2300 |
| 磁心因数 (ΣI/A) mm1 | 3.14 |
| 有效长度 (le) mm | 9.73 |
| 有效面积 (Ae) mm² | 3.09 |
| 最小磁心横截面 (Amin) mm² | 2.3 |
| 有效磁体体积 (Ve) mm³ | 30 |
| 表面 | 无涂层 |
| 高度 | 0.112"（2.85mm） |
| 长度 | 0.242"（6.15mm） |
| 宽度 | 0.154"（3.90mm） |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.90.9630 |
